Bar lights

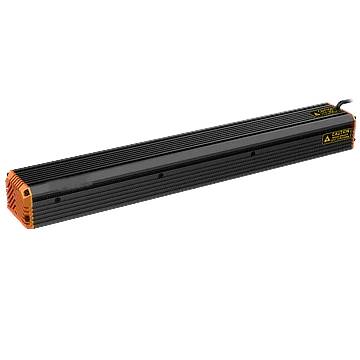

Bar Light, 450 x 40 mm, Blue (LS-LLDS-H-450-40-B)
Model LS-LLDS-H-450-40-B
Bar Light, 450 x 40 mm, Blue. The irradiation direction and angle can be adjusted freely. Support multi-side installation.
Features
- The irradiation direction and angle can be adjusted freely.
- Support multi-side installation.
- Features high-quality LED particles, stable lighting, and high brightness.
Specifications
| Model | LS-LLDS-H-450-40-B |
|---|---|
| Color | Blue |
| Center illuminance/irradiance | ≥ 4800 lux@100 mm |
| Best working distance | 30 mm to 500 mm |
| Wavelength | 465 nm |
| Color temperature | W: 6000K to 7500K |
| Power | 34.3 W |
| Connector type | SMR-03V-B |
| Dimension | 423 mm × 40 mm × 30 mm |
| Emitting area dimension | 411 mm × 31.6 mm |
| LED rows | 6 |
| Weight | 0.83 kg |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse plate included | PMMA |
| Safety class | RG2 |
| Safety distance | 0.70 m |
| Shipping weight (estimated) | 1.26 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Bar lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LLDS-H-400-40-W | 400 x 40 mm, White | 41.9 W | $229.00 | 4 in stock | View |
| LS-LLDS-H-400-40-R | 400 x 40 mm, Red | 23.8 W | $229.00 | 4 in stock | View |
| LS-LLDS-H-400-40-B | 400 x 40 mm, Blue | 30.7 W | $229.00 | 2 in stock | View |
| LS-LLDS-H-400-40-IR850 | 400 x 40 mm, IR 850 nm | 33.8 W | $229.00 | 4 in stock | View |
| LS-LLDS-H-400-40-IR940 | 400 x 40 mm, IR 940 nm | 34.3 W | $229.00 | 5 in stock | View |
| LS-LLDS-H-450-30-W | 450 x 30 mm, White | 30.1 W | $249.00 | 5 in stock | View |
| LS-LLDS-H-450-30-R | 450 x 30 mm, Red | 18 W | $249.00 | 4 in stock | View |
| LS-LLDS-H-450-30-B | 450 x 30 mm, Blue | 23 W | $249.00 | 5 in stock | View |
| LS-LLDS-H-450-30-IR850 | 450 x 30 mm, IR 850 nm | 25.4 W | $249.00 | 5 in stock | View |
| LS-LLDS-H-450-30-IR940 | 450 x 30 mm, IR 940 nm | 25.7 W | $249.00 | 3 in stock | View |
| LS-LLDS-H-450-40-W | 450 x 40 mm, White | 47 W | $249.00 | 4 in stock | View |
| LS-LLDS-H-450-40-R | 450 x 40 mm, Red | 26.9 W | $249.00 | 2 in stock | View |
| LS-LLDS-H-450-40-IR850 | 450 x 40 mm, IR 850 nm | 37.9 W | $249.00 | 4 in stock | View |
| LS-LLDS-H-450-40-IR940 | 450 x 40 mm, IR 940 nm | 38.6 W | $249.00 | 5 in stock | View |
| LS-LLDS-H-500-30-W | 500 x 30 mm, White | 33.5 W | $279.00 | 5 in stock | View |
| LS-LLDS-H-500-30-R | 500 x 30 mm, Red | 19.9 W | $279.00 | 3 in stock | View |
| LS-LLDS-H-500-30-B | 500 x 30 mm, Blue | 25.4 W | $279.00 | 3 in stock | View |
| LS-LLDS-H-500-30-IR850 | 500 x 30 mm, IR 850 nm | 28.1 W | $279.00 | 2 in stock | View |
| LS-LLDS-H-500-30-IR940 | 500 x 30 mm, IR 940 nm | 28.6 W | $279.00 | 5 in stock | View |
| LS-LLDS-H-500-40-W | 500 x 40 mm, White | 52.2 W | $279.00 | 3 in stock | View |
| LS-LLDS-H-500-40-R | 500 x 40 mm, Red | 29.8 W | $279.00 | 5 in stock | View |
| LS-LLDS-H-500-40-B | 500 x 40 mm, Blue | 38.4 W | $279.00 | 4 in stock | View |
| LS-LLDS-H-500-40-IR850 | 500 x 40 mm, IR 850 nm | 42.2 W | $279.00 | 4 in stock | View |
| LS-LLDS-H-500-40-IR940 | 500 x 40 mm, IR 940 nm | 43 W | $279.00 | 4 in stock | View |
