Bar lights

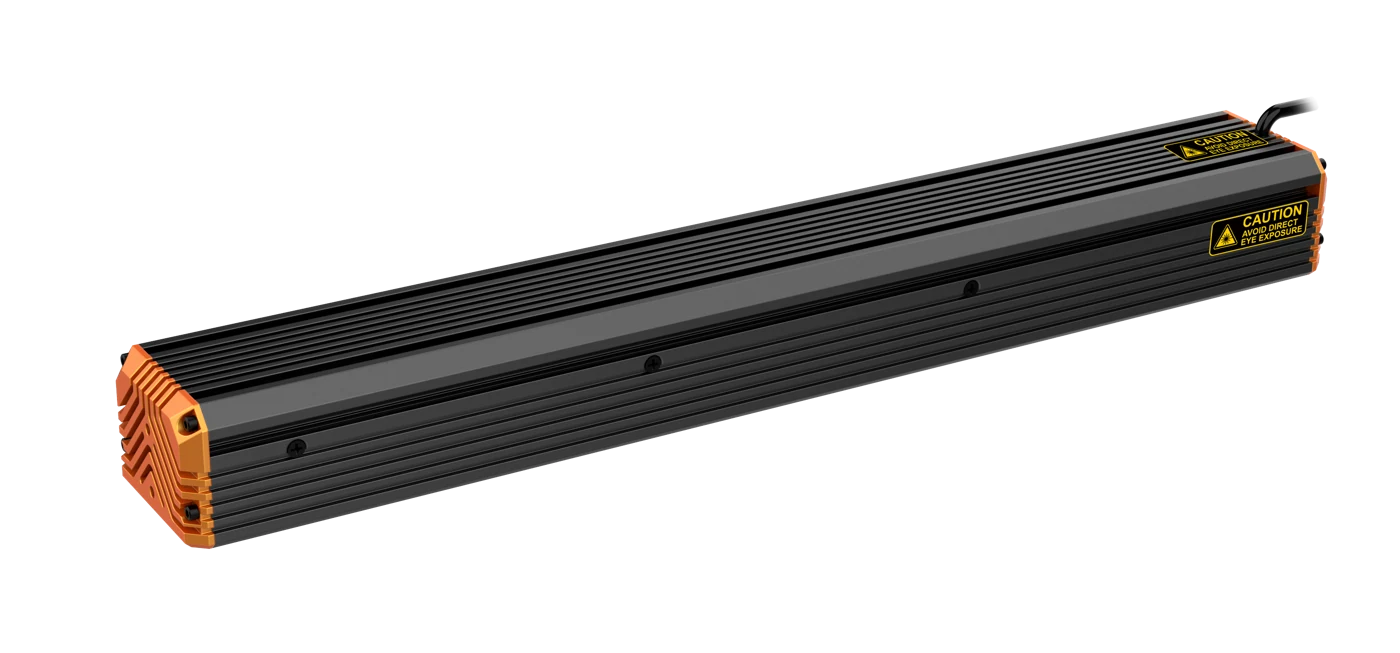

Bar Light, 1800 x 40 mm, White (LS-LLDS-H-1800-40-W)
Model LS-LLDS-H-1800-40-W
Bar Light, 1800 x 40 mm, White. Freely adjustable illumination direction and angle Multi-side mounting
Features
- Freely adjustable illumination direction and angle
- Multi-side mounting
- High-quality LED beads for high brightness
Specifications
| Model | LS-LLDS-H-1800-40-W |
|---|---|
| Color | White |
| Best working distance | 30 ~ 500 mm |
| Color temperature | 6000 ~ 7500K |
| Power | 162.2 W |
| Connector type | 12M-2A(Female) |
| Input voltage | 24 VDC |
| Dimension | 1638 mm × 40 mm × 30 mm |
| Emitting area dimension | 1622.6 mm × 31.6 mm |
| LED rows | 6 |
| Weight | 2.9 kg |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse plate included | PMMA |
| Shipping weight (estimated) | 4.16 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bar lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LLDS-H-1000-40-B | 1000 x 40 mm, Blue | 76.3 W | $509.00 | 5 in stock | View |
| LS-LLDS-H-1000-40-IR850 | 1000 x 40 mm, IR 850 nm | 84.5 W | $509.00 | 5 in stock | View |
| LS-LLDS-H-1000-40-IR940 | 1000 x 40 mm, IR 940 nm | 85.9 W | $509.00 | 2 in stock | View |
| LS-LLDS-H-1200-30-W | 1200 x 30 mm, White | 80.3 W | $609.00 | 4 in stock | View |
| LS-LLDS-H-1200-30-R | 1200 x 30 mm, Red | 47.8 W | $609.00 | 4 in stock | View |
| LS-LLDS-H-1200-30-B | 1200 x 30 mm, Blue | 61 W | $609.00 | 3 in stock | View |
| LS-LLDS-H-1200-30-IR850 | 1200 x 30 mm, IR 850 nm | 67.7 W | $609.00 | 2 in stock | View |
| LS-LLDS-H-1200-30-IR940 | 1200 x 30 mm, IR 940 nm | 68.6 W | $609.00 | 4 in stock | View |
| LS-LLDS-H-1200-40-W | 1200 x 40 mm, White | 116.4 W | $609.00 | 5 in stock | View |
| LS-LLDS-H-1200-40-R | 1200 x 40 mm, Red | 71.5 W | $609.00 | 2 in stock | View |
| LS-LLDS-H-1200-40-B | 1200 x 40 mm, Blue | 91.7 W | $609.00 | 4 in stock | View |
| LS-LLDS-H-1200-40-IR850 | 1200 x 40 mm, IR 850 nm | 101.3 W | $609.00 | 5 in stock | View |
| LS-LLDS-H-1200-40-IR940 | 1200 x 40 mm, IR 940 nm | 103.2 W | $609.00 | 5 in stock | View |
| LS-LLDS-H-1300-40-W | 1300 x 40 mm, White | 116 W | $649.00 | 3 in stock | View |
| LS-LLDS-H-1400-30-W | 1400 x 30 mm, White | 93.7 W | $699.00 | 2 in stock | View |
| LS-LLDS-H-1400-30-R | 1400 x 30 mm, Red | 55.7 W | $699.00 | 3 in stock | View |
| LS-LLDS-H-1400-30-B | 1400 x 30 mm, Blue | 71.3 W | $699.00 | 2 in stock | View |
| LS-LLDS-H-1400-30-IR850 | 1400 x 30 mm, IR 850 nm | 79 W | $699.00 | 4 in stock | View |
| LS-LLDS-H-1400-30-IR940 | 1400 x 30 mm, IR 940 nm | 80.2 W | $699.00 | 4 in stock | View |
| LS-LLDS-H-1400-40-W | 1400 x 40 mm, White | 116.5 W | $699.00 | 5 in stock | View |
| LS-LLDS-H-1400-40-R | 1400 x 40 mm, Red | 83.5 W | $699.00 | 3 in stock | View |
| LS-LLDS-H-1400-40-B | 1400 x 40 mm, Blue | 107 W | $699.00 | 5 in stock | View |
| LS-LLDS-H-1400-40-IR850 | 1400 x 40 mm, IR 850 nm | 118.3 W | $699.00 | 4 in stock | View |
| LS-LLDS-H-1400-40-IR940 | 1400 x 40 mm, IR 940 nm | 120 W | $699.00 | 4 in stock | View |
