Bar lights

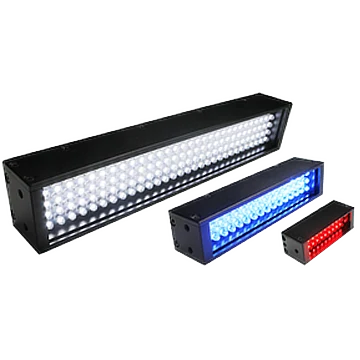

Bar Light, 552 x 18 mm, White (LS-LLDS-552-18-W)
Model LS-LLDS-552-18-W
Bar Light, 552 x 18 mm, White. One-piece aluminum alloy body for good heat dissipation Multiple mounting options: both ends and back
Features
- One-piece aluminum alloy body for good heat dissipation
- Multiple mounting options: both ends and back
- High-quality LEDs with high brightness
Specifications
| Model | LS-LLDS-552-18-W |
|---|---|
| Color | White |
| Color temperature | 6000~7000K |
| Connector type | SMR-03V-B |
| Power | 8.6 W |
| LED rows | 2 |
| Cable length | 500 mm |
| Dimension | 552 mm × 18 mm × 27 mm |
| Emitting area length | 540 mm × 12 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 172 bar lights of this range that state a voltage are rated 24 V |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Classic bar lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LLDS-372-18-W | 372 x 18 mm, White | 5.8 W | $229.00 | 4 in stock | View |
| LS-LLDS-372-28-W | 372 x 28 mm, White | 11.5 W | $229.00 | 3 in stock | View |
| LS-LLDS-372-38-W | 372 x 38 mm, White | 17.6 W | $229.00 | 3 in stock | View |
| LS-LLDS-417-18-W | 417 x 18 mm, White | 6.5 W | $259.00 | 2 in stock | View |
| LS-LLDS-417-28-W | 417 x 28 mm, White | 13 W | $259.00 | 2 in stock | View |
| LS-LLDS-417-38-W | 417 x 38 mm, White | 22 W | $259.00 | 4 in stock | View |
| LS-LLDS-462-18-W | 462 x 18 mm, White | 7.2 W | $279.00 | 2 in stock | View |
| LS-LLDS-462-28-W | 462 x 28 mm, White | 14.4 W | $279.00 | 3 in stock | View |
| LS-LLDS-462-38-W | 462 x 38 mm, White | 24.5 W | $279.00 | 4 in stock | View |
| LS-LLDS-507-18-W | 507 x 18 mm, White | 7.9 W | $299.00 | 3 in stock | View |
| LS-LLDS-507-28-W | 507 x 28 mm, White | 15.8 W | $299.00 | 4 in stock | View |
| LS-LLDS-507-38-W | 507 x 38 mm, White | 23.8 W | $299.00 | 4 in stock | View |
| LS-LLDS-552-28-W | 552 x 28 mm, White | 17.3 W | $329.00 | 4 in stock | View |
| LS-LLDS-552-38-W | 552 x 38 mm, White | 25.9 W | $329.00 | 2 in stock | View |
| LS-LLDS-597-18-W | 597 x 18 mm, White | 9.4 W | $349.00 | 3 in stock | View |
| LS-LLDS-597-28-W | 597 x 28 mm, White | 18.7 W | $349.00 | 5 in stock | View |
| LS-LLDS-597-38-W | 597 x 38 mm, White | 31.8 W | $349.00 | 2 in stock | View |
| LS-LLDS-642-38-B | 642 x 38 mm, Blue | 34.3 W | $369.00 | 4 in stock | View |
| LS-LLDS-642-28-R | 642 x 28 mm, Red | 25.2 W | $369.00 | 2 in stock | View |
| LS-LLDS-642-18-W | 642 x 18 mm, White | 10.1 W | Price on request | 4 in stock | View |
| LS-LLDS-642-28-W | 642 x 28 mm, White | 20.2 W | $369.00 | 5 in stock | View |
| LS-LLDS-642-38-W | 642 x 38 mm, White | 21.6 W | $369.00 | 4 in stock | View |
| LS-LLDS-642-38-R | 642 x 38 mm, Red | 19.6 W | $369.00 | 3 in stock | View |
| LS-LLDS-1002-28-W | 1002 x 28 mm, White | 31.7 W | $559.00 | 5 in stock | View |
