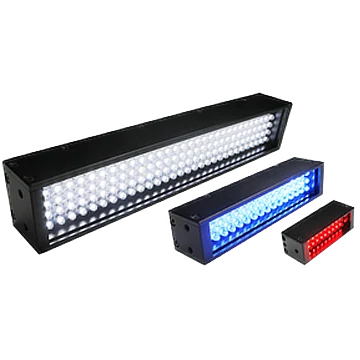

Bar Light, 237 x 38 mm, Red (LS-LLDS-237-38-R)
Model LS-LLDS-237-38-R
Bar Light, 237 x 38 mm, Red. One-piece aluminum alloy body for good heat dissipation Multiple mounting options: both ends and back
Features
- One-piece aluminum alloy body for good heat dissipation
- Multiple mounting options: both ends and back
- High-quality LEDs with high brightness
Specifications
| Model | LS-LLDS-237-38-R |
|---|---|
| Color | Red |
| Wavelength | 625 nm |
| Connector type | SMR-03V-B |
| Power | 12.2 W |
| LED rows | 6 |
| Cable length | 500 mm |
| Dimension | 237 mm × 38 mm × 27 mm |
| Emitting area length | 225 mm × 32 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 172 bar lights of this range that state a voltage are rated 24 V |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Classic bar lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LLDS-102-18-W | 102 x 18 mm, White | 2.6 W | $89.00 | 4 in stock | View |
| LS-LLDS-102-28-W | 102 x 28 mm, White | 2.9 W | $89.00 | 2 in stock | View |
| LS-LLDS-147-18-W | 147 x 18 mm, White | 2.2 W | $109.00 | 3 in stock | View |
| LS-LLDS-147-38-W | 147 x 38 mm, White | 6.5 W | $109.00 | 4 in stock | View |
| LS-LLDS-147-28-W | 147 x 28 mm, White | 4.3 W | $109.00 | 4 in stock | View |
| LS-LLDS-192-18-W | 192 x 18 mm, White | 2.9 W | $139.00 | 3 in stock | View |
| LS-LLDS-192-38-W | 192 x 38 mm, White | 9.8 W | $139.00 | 5 in stock | View |
| LS-LLDS-192-28-W | 192 x 28 mm, White | 5.8 W | $139.00 | 3 in stock | View |
| LS-LLDS-237-18-W | 237 x 18 mm, White | 3.6 W | $159.00 | 3 in stock | View |
| LS-LLDS-237-38-B | 237 x 38 mm, Blue | 9.8 W | $159.00 | 3 in stock | View |
| LS-LLDS-237-28-W | 237 x 28 mm, White | 7.2 W | $159.00 | 3 in stock | View |
| LS-LLDS-237-38-W | 237 x 38 mm, White | 10.8 W | $159.00 | 2 in stock | View |
| LS-LLDS-282-28-W | 282 x 28 mm, White | 8.6 W | $179.00 | 4 in stock | View |
| LS-LLDS-282-18-W | 282 x 18 mm, White | 4.3 W | $179.00 | 5 in stock | View |
| LS-LLDS-282-38-W | 282 x 38 mm, White | 14.7 W | $179.00 | 3 in stock | View |
| LS-LLDS-327-28-W | 327 x 28 mm, White | 10 W | $209.00 | 2 in stock | View |
| LS-LLDS-327-18-W | 327 x 18 mm, White | 5 W | $209.00 | 2 in stock | View |
| LS-LLDS-327-38-W | 327 x 38 mm, White | 15.1 W | $209.00 | 4 in stock | View |
| LS-LLDS-372-18-W | 372 x 18 mm, White | 5.8 W | $229.00 | 4 in stock | View |
| LS-LLDS-372-28-W | 372 x 28 mm, White | 11.5 W | $229.00 | 3 in stock | View |
| LS-LLDS-372-38-W | 372 x 38 mm, White | 17.6 W | $229.00 | 3 in stock | View |
| LS-LLDS-417-18-W | 417 x 18 mm, White | 6.5 W | $259.00 | 2 in stock | View |
| LS-LLDS-417-28-W | 417 x 28 mm, White | 13 W | $259.00 | 2 in stock | View |
| LS-LLDS-417-38-W | 417 x 38 mm, White | 22 W | $259.00 | 4 in stock | View |
