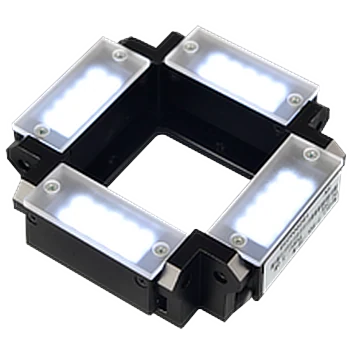

Bar Light, 78 x 78 mm, White (LS-LLAS-78-W)
Model LS-LLAS-78-W
Bar Light, 78 x 78 mm, White. Angle adjustable for optimal lighting Brightness can be controlled together or individually
Features
- Angle adjustable for optimal lighting
- Brightness can be controlled together or individually
Specifications
| Model | LS-LLAS-78-W |
|---|---|
| Color | White |
| Color temperature | 6000~7000K |
| Irradiation angle | 0° to 90° (single bar light) |
| Connector type | SMR-03V-B |
| Power | 3.6 W |
| LED rows | 2 |
| Cable length | 500 mm |
| Dimension | 78 mm × 78 mm × 25 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 172 bar lights of this range that state a voltage are rated 24 V |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bar lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LLAS-112-W | 112 x 112 mm, White | 8.8 W | $99.00 | 4 in stock | View |
| LS-LLAS-154-W | 154 x 154 mm, White | 11.5 W | $119.00 | 5 in stock | View |
| LS-LLAS-260-W | 260 x 260 mm, White | 34.5 W | $169.00 | 3 in stock | View |
