Backlights

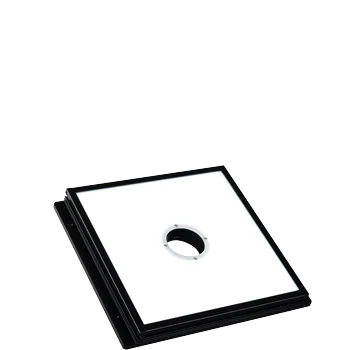

Flat Backlight with Center Hole, 334 x 214 mm, White (LS-LK-300-200-W)
Model LS-LK-300-200-W
Flat Backlight with Center Hole, 334 x 214 mm, White. Wide-angle SMD LEDs in a high-density layout for good uniformity Available in custom sizes and wavelengths
Features
- Wide-angle SMD LEDs in a high-density layout for good uniformity
- Available in custom sizes and wavelengths
- Multiple mounting options
Specifications
| Model | LS-LK-300-200-W |
|---|---|
| Color | White |
| Color temperature | 6000 ~ 7000K |
| Connector type | SMR-03V-B |
| Power | 45.6 W |
| Cable length | 500 mm |
| Dimension | 334 mm × 214 mm × 20 mm |
| Bore dimension | Ø 45 mm |
| Emitting area dimension | 300 mm × 200 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 115 backlights of this range that state a voltage are rated 24 V |
