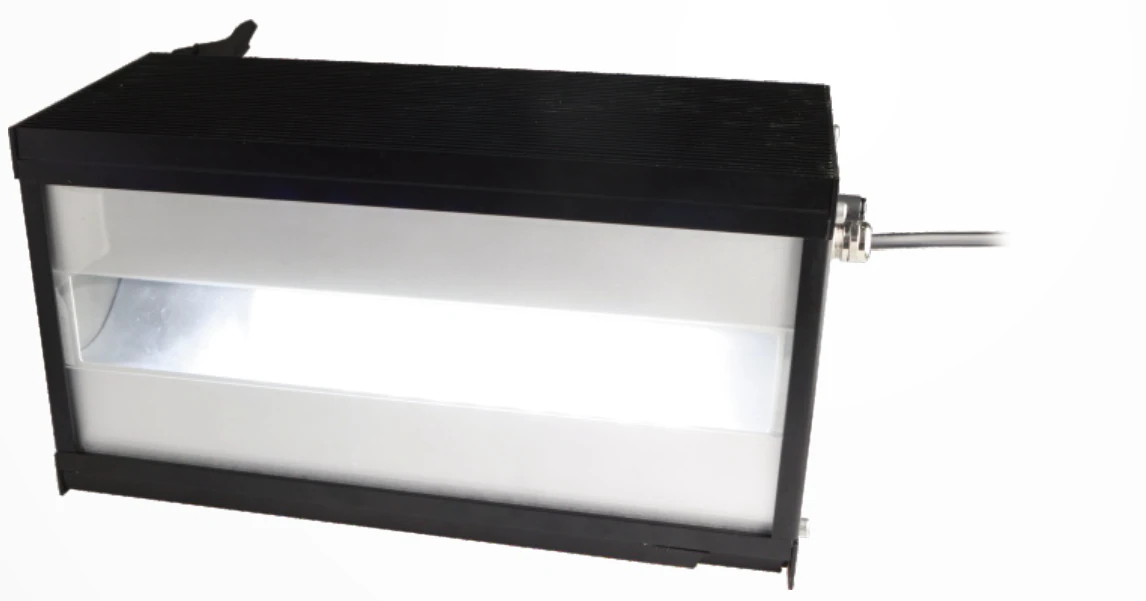

330 x 50 mm Long distance linear light (LIP) (LS-LIP360)
Model LS-LIP360
Long-distance linear light for humid, dusty environments with high luminance and a special heat dissipation design; the light band is 100 mm wide at 3 m working distance and reaches 6500 lx. It works for line-scan and area-scan, connects to 220 V power with direct luminance adjustment, and is waterproof and dustproof to IP67.
Features
- Used in humid, dusty environments
- High luminance, long distance emitting
- High heat dissipation performance, special heat dissipation design
- Length can be customized
- Power supply integration
- IP67 level
Specifications
| Model | LS-LIP360 |
|---|---|
| Protection | IP67 |
| Light spot | band 100 mm wide (3000 mm long) at 3 m WD, 6500 lx |
| Customizable | colour and colour temperature, cable length, installation method, multi-area control |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life span | 50000 h (to 50% of factory-default luminance) |
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Custom wavelengths | UV & IR light can be customized as required |
| Voltage | 24V |
| Power (W) | 50 |
| Weight (g) | 7150 |
| Adapted controller | 220V power plug |
| Emitting surface (mm) | 330 x 50 |
| Dimension drawing | 1 |
| Common | N |
| Cable (mm) | 1000 (drawing) |
Applications
- Line-scan and area-scan illumination at long working distance
