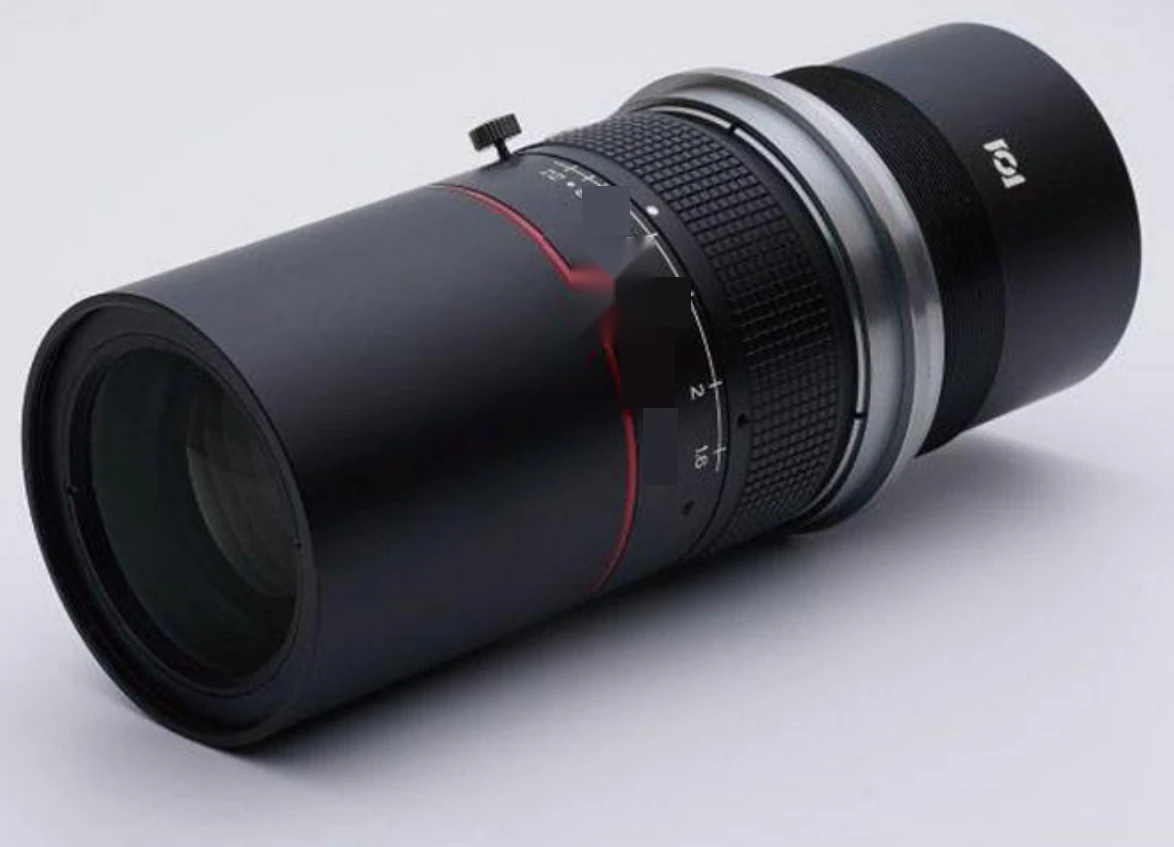

High resolution line scan lens, 100 mm, V-Mount (LS-LH1635A)
Model LS-LH1635A
Ultra-high-resolution line scan lens for 16K 5 µ / 3.5 µ line scan cameras, resolution up to 1 µ, distortion below 0.001%, dia. 82 image circle and high uniformity from the centre of the image to the edge; applied to OLED screen detection.
Features
- Ultra-high resolution line scan lens
- Suitable for 16K5µ/3.5µ line scan cameras
- Resolution up to 1 µ
- Distortion below 0.001%
- Max image circle dia. 82
- High uniformity from the center of the image to the edge
- Applied to OLED screen detection
Specifications
| Model | LS-LH1635A |
|---|---|
| Focal length | 100mm |
| F/NO | 1.6-22 |
| Mount | V-Mount |
| Distortion | <0.01% |
| EFL | 100mm |
| Standard magnification | 3.5X |
| Image size (dia.) | dia. 82 |
| Optical distortion | <0.01% |
| Working distance | 48.4 |
| Conjugate distance | 551.79 |
| Flange distance | 394.8 |
| Central resolution | 200lp/mm |
| Sensor format | dia. 82 mm image circle |
| Aperture | F1.6-22 |
| Shipping weight | 0.94 kg |
Applications
- Industrial: blemish / stain - detect defects and blemishes on steel plates
- Electronic component: yes / no - check the number of micro chips and poor imprint
- Electronic component: blemish / stain - detecting camera defects
- Electronic equipment: yes / no - detect poor binding and lead breakage of motor wires
