Dome lights

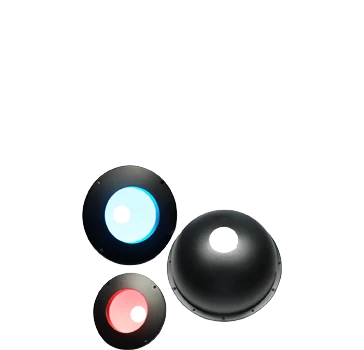

Dome Light, 198 mm dia., White (LS-LGSS-198-W)
Model LS-LGSS-198-W
Dome Light, 198 mm dia., White. Specially processed hemispherical diffuse wall for uniform diffuse lighting High-power SMD LEDs for high brightness
Features
- Specially processed hemispherical diffuse wall for uniform diffuse lighting
- High-power SMD LEDs for high brightness
- Available in custom sizes and wavelengths
- Multiple camera viewing holes can be added to suit the application
Specifications
| Model | LS-LGSS-198-W |
|---|---|
| Color | White |
| Color temperature | 6000~7000K |
| Connector type | SMR-03V-B |
| Power | 31 W |
| Cable length | 500 mm |
| Outer dimension | Φ198 mm |
| Bore dimension | Φ30 mm |
| Emitting area dimension | Φ138 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Dome lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LGSS-116-W | 116 mm dia., White | 16 W | $259.00 | 3 in stock | View |
| LS-LGSS-116-R | 116 mm dia., Red | 11 W | Price on request | 3 in stock | View |
| LS-LGSS-175-W | 175 mm dia., White | 19.2 W | $449.00 | 4 in stock | View |
| LS-LGSS-175-R | 175 mm dia., Red | 16 W | $449.00 | 5 in stock | View |
| LS-LGSS-260-W | 260 mm dia., White | 41 W | $809.00 | 4 in stock | View |
