Shadowless lights

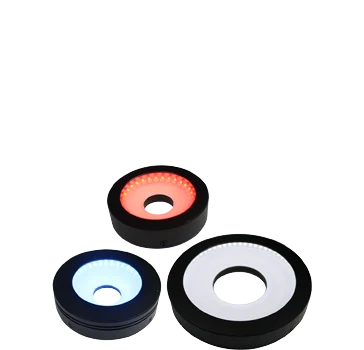

Flat Shadowless Light, 116 mm dia., Red (LS-LGES-116-R)
Model LS-LGES-116-R
Flat Shadowless Light, 116 mm dia., Red. Simple, compact structure, easy to install Special diffuser plate produces uniform high-angle lighting
Features
- Simple, compact structure, easy to install
- Special diffuser plate produces uniform high-angle lighting
Specifications
| Model | LS-LGES-116-R |
|---|---|
| Color | Red |
| Wavelength | 625 nm |
| Connector type | SMR-03V-B |
| Power | 2.6 W |
| Cable length | 500 mm |
| LED rows | 1 |
| Dimension | Φ116 mm × 17 mm |
| Outer dimension | Φ116 mm |
| Bore dimension | Φ44 mm |
| Emitting area dimension | Φ90 mm |
| Humidity | 20% to 85% RH (non-condensing) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Flat shadowless lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LGES-116-W | 116 mm dia., White | 3.4 W | $259.00 | 2 in stock | View |
| LS-LGES-160-R | 160 mm dia., Red | 4.3 W | Price on request | 2 in stock | View |
| LS-LGES-160-W | 160 mm dia., White | 6.5 W | $389.00 | 5 in stock | View |
