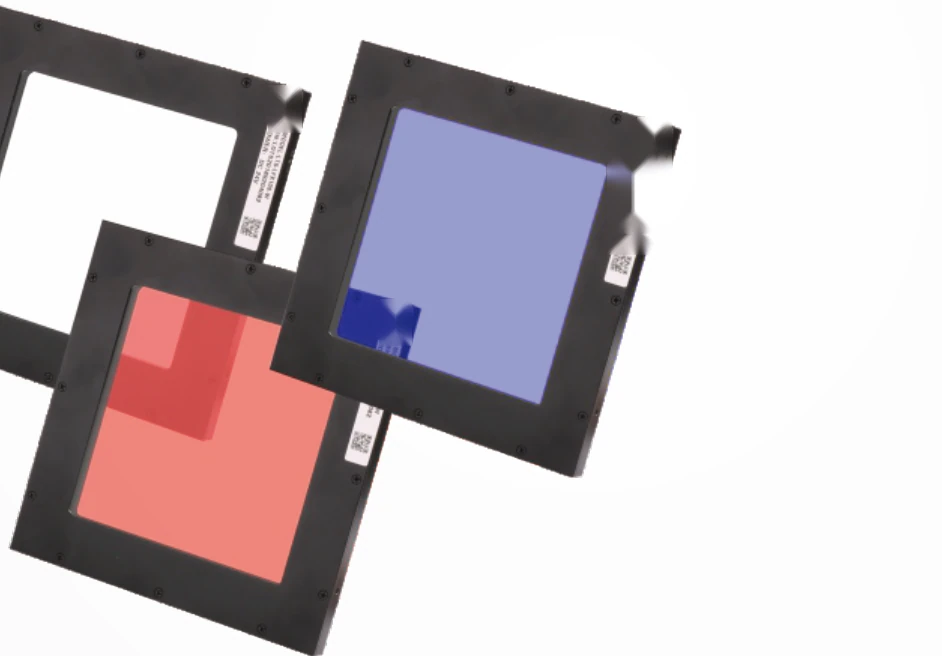

100 x 100 mm Flat shadowless light (LFX) (LS-LFX100)
Model LS-LFX100
Flat shadowless light with both coaxial and shadowless lighting effect, high light transmission and high uniformity; compact and easy to install. It gives the same effect as a coaxial + dome combined light in a more compact volume.
Features
- Coaxial and shadowless light effect
- High light transmission, high uniformity
- Compact, easy to install
- A printed-dot light guide plate controls the direction of the emitted light
- Same effect as a coaxial + dome combined light with a more compact volume
- Customizable: Length and width, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
Specifications
| Model | LS-LFX100 |
|---|---|
| Voltage | 24 V |
| Min. size | 145 mm x 145 mm |
| Max. size | 195 mm x 195 mm |
| Recommended working distance | 40~150 mm |
| FOV | 70~100 mm |
| Colour temperature of white | 6600 K |
| Cable length (drawing) | 500 mm |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Life-span | 50000 h (to 50% of factory default luminance) |
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
| Power (R) | 7.7W |
| Power (G/B/W) | 12.0W |
| Weight | 413 g |
| Common model | Y |
| Dimension drawing no. | 1 |
| Emitting surface (mm) | 100 x 100 |
Applications
- Inspection in narrow installation spaces
- Edge contour inspection
- Outline defect inspection
- Impurity and liquid level inspection
- Imaging example: dirty part inspection on a rivet (LS-LFX100-W), uniform image with high-contrast defect
