Machine vision lenses

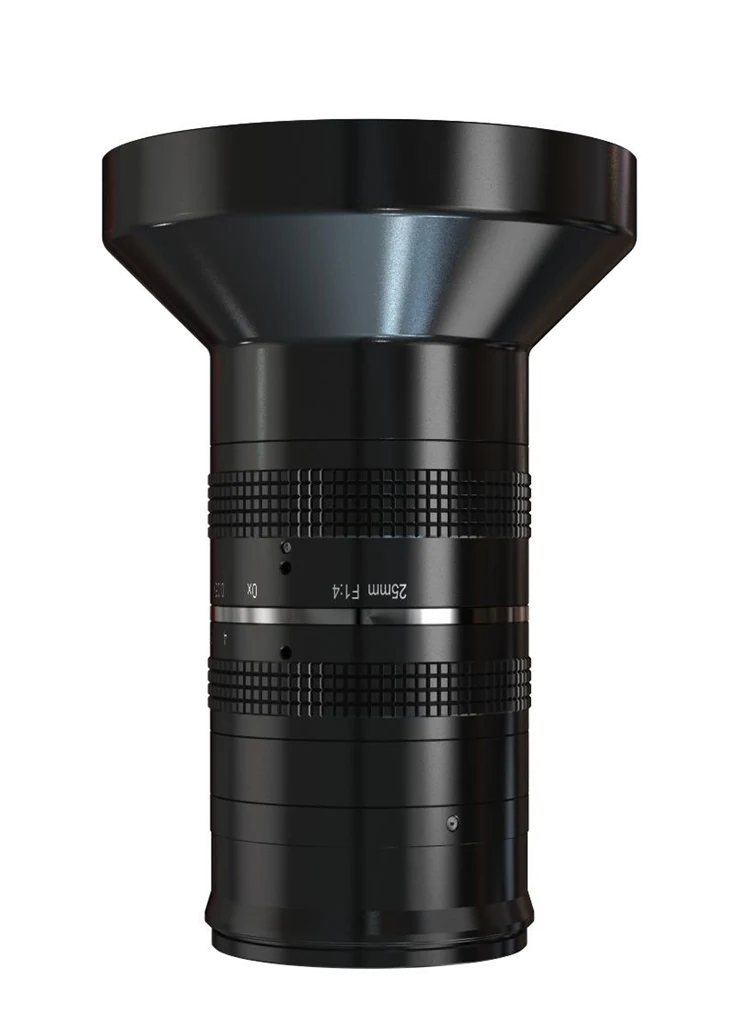

25mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount (LS-LF2540M-M58-65MP)
Model LS-LF2540M-M58-65MP
25mm, F4.0, Full Frame φ46mm, 65MP Lens, M58-Mount. Adopts high-precision lens for 65MP area scan cameras. Provides excellent consistency of image clarity and low distortion.
Features
- Adopts high-precision lens for 65MP area scan cameras.
- Provides excellent consistency of image clarity and low distortion.
- Provides max. image size Ø46 mm.
Specifications
| Model | LS-LF2540M-M58-65MP |
|---|---|
| Focal length | 25 mm |
| F-number | F4.0 to F22 |
| Image size | Ø46 mm |
| Optical distortion | 0.9% |
| Magnification range | 0.001 x to 0.2 x |
| Working distance range | 100mm to inf mm (tolerance: ± 5 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Mount | M58 × P0.75 |
| Flange back length | 11.48 mm |
| Dimension | Ø98 × 139.6 mm (Ø3.9" × 5.5") |
| Weight | 1.1kg |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Filter thread | M95 × P1.0 |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 1.64 kg |
