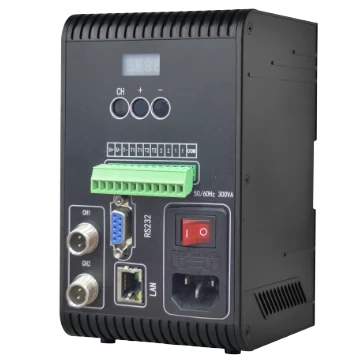

Digital constant-voltage light controller, Strobe overdrive, 200W, 2 channels, 12M-2B interface, Strobe overdrive, With GigE port (LS-LEVD-200-2-PY)
Model LS-LEVD-200-2-PY
Digital constant-voltage light controller, Strobe overdrive, 200W, 2 channels, 12M-2B interface, Strobe overdrive, With GigE port. Adjustable light pulse width from 0 to 999 μs Boosts instantaneous light brightness by over 400% while extending light lifetime
Features
- Adjustable light pulse width from 0 to 999 μs
- Boosts instantaneous light brightness by over 400% while extending light lifetime
- Camera trigger port for well-synchronized image capture
- 2 operating modes: external trigger and internal trigger
- 2 protection mechanisms: output overload and short circuit
Specifications
| Model | LS-LEVD-200-2-PY |
|---|---|
| Drive mode | Constant voltage |
| Lighting mode | Pulsed |
| PWM frequency | Not supported |
| Strobe overdrive | Supported |
| Channel | 2 |
| Dimming mode | Pulse width adjustment |
| Brightness level | 0 ~ 999 |
| Lighting response time | ≤ 5 μs |
| Trigger mode | External trigger and internal trigger |
| Communication protocol | RS-232, GigE |
| Applicable product | Ring light, Bar light, Flat light, Coaxial light |
| Input voltage | 48 VDC |
| Input current | 2.4 A |
| Output current | 100 A max |
| Output power | 200 W max |
| Output current for each channel | 50 A max (instantaneous) |
| Trigger in | Rising-edge signal, 12 to 24 VDC |
| Trigger out | 12 VDC voltage signal output in sync with the light |
| Power supply interface | AC socket |
| Console interface | Serial port |
| Digital I/O | 4 inputs, 4 camera trigger outputs (camera triggering supports rising edge only), 1 internal power output |
| Lighting output connector | 12M-2B |
| Dimension | 169 mm × 100 mm × 111.8 mm |
| Shell material | Plastic |
| Weight | Approx. 810 g |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Ingress protection | IP30 (when properly installed) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Cooling mode | Forced cooling (built-in fan) |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 1.23 kg |
