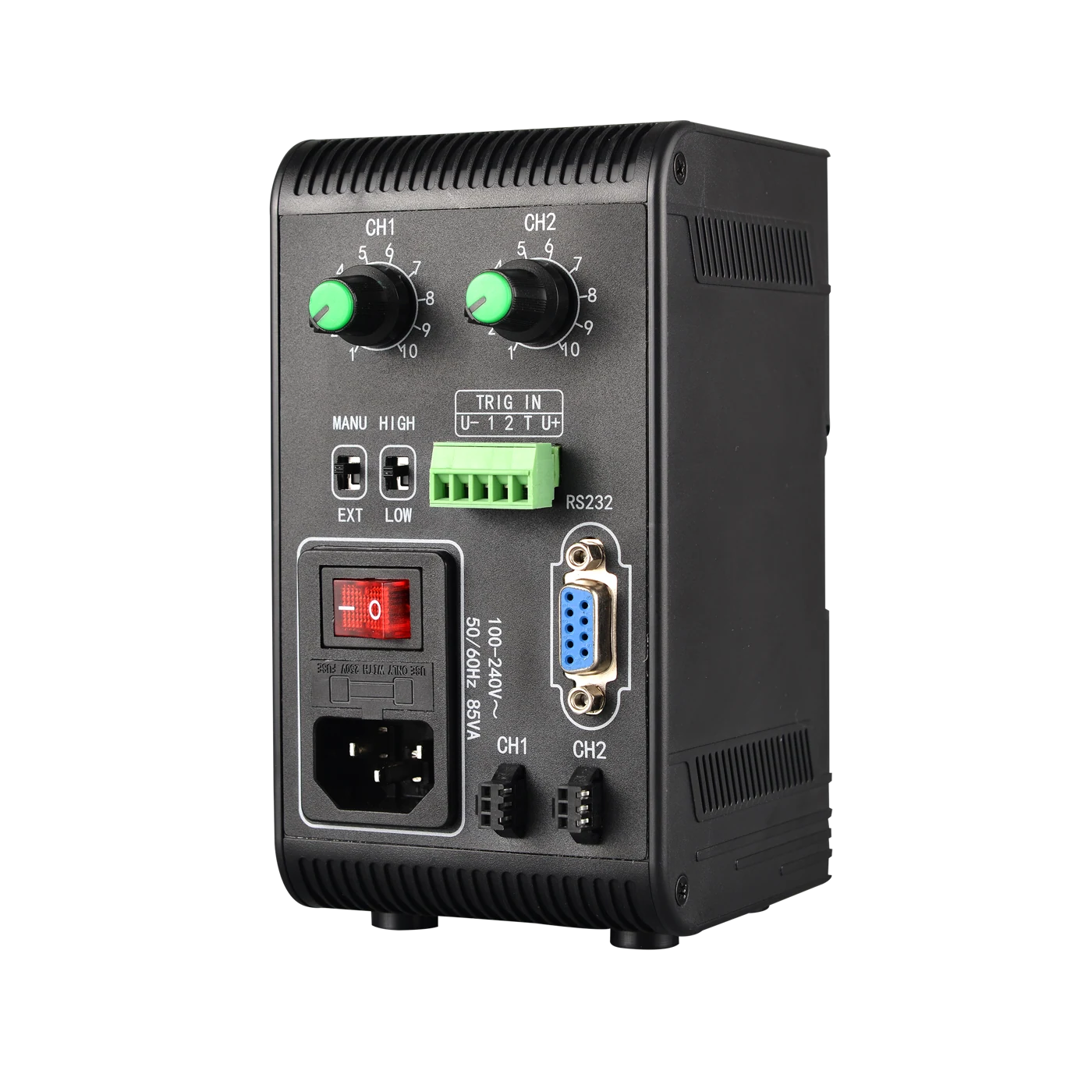

Digital constant-current light controller, 10W, 2 channels, SMR-03V-B connector, Spot light controller (LS-LEAD-10-2-DY)
Model LS-LEAD-10-2-DY
Digital constant-current light controller, 10W, 2 channels, SMR-03V-B connector, Spot light controller. 2+ channels for 5 V spot lights with 256 brightness levels Controlled via panel potentiometer or RS-232 serial communication
Features
- 2+ channels for 5 V spot lights with 256 brightness levels
- Controlled via panel potentiometer or RS-232 serial communication
- Constant-current drive for more stable light output
- Input voltage 100–240 VAC
Specifications
| Model | LS-LEAD-10-2-DY |
|---|---|
| Drive mode | Constant current |
| Lighting mode | Constant current |
| PWM frequency | Not supported |
| Strobe overdrive | Not supported |
| Channel | 2 |
| Dimming mode | Panel knob, Serial communication |
| Brightness level | Panel knob: 0 to 10; Serial communication: 0 to 255 |
| Lighting response time | <150 μs |
| Trigger mode | External trigger supported, Internal trigger |
| Communication protocol | RS-232 |
| Applicable product | Spot light |
| Input voltage | 5 VDC |
| Input current | 0.2 A |
| Output current | 1.4 A max |
| Output power | 10 W max |
| Output current for each channel | 0.7 A max |
| Trigger in | Level signal DC 5 to 24 V / 6 mA |
| Trigger out | Not supported |
| Power supply interface | AC socket |
| Console interface | Serial port |
| Digital I/O | 2 inputs, 1 internal power output |
| Lighting output connector | SMR-03V-BC |
| Dimension | 150.7 mm × 80 mm × 101 mm |
| Shell material | Plastic |
| Weight | Approx. 540 g |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 (when properly installed) |
| Cooling mode | Natural cooling |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.86 kg |
