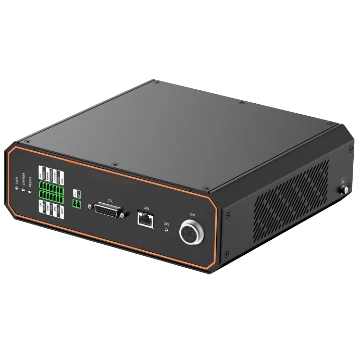

2.5D programmable light controller, 600 W power, Single channel (LS-LE202-600W24-1T)
Model LS-LE202-600W24-1T
2.5D programmable light controller, 600 W power, Single channel. Constant-voltage drive for stable light control Device management and parameter configuration via Ethernet
Features
- Constant-voltage drive for stable light control
- Device management and parameter configuration via Ethernet
- External trigger input and output for synchronized light and camera control
- High-frequency response for fast light pattern switching with line-scan cameras
- Dedicated client and management software: feature-rich and easy to use
Specifications
| Model | LS-LE202-600W24-1T |
|---|---|
| Drive mode | Digital, constant voltage |
| Lighting mode | Strobe |
| Channel | 1 channels |
| Dimming mode | Software (Ethernet port), Adjustable brightness |
| Trigger mode | External trigger supported, Internal trigger, Software trigger |
| Trigger response delay | 650 ns |
| Max. line rate | 200 kHz |
| Communication protocol | UDP |
| Applicable product | 2.5D line-scan programmable fringe light |
| Input voltage | 24 VDC |
| Input current | 3.7 A (115 VAC), 1.6 A (230 VAC) |
| Output current | 16 A max |
| Output power | 405 W max |
| Output current for each channel | 16 A max |
| Trigger in | High level 4.5 to 24 VDC, Low level 0 to 2 VDC |
| Trigger out | RS485 standard output |
| Power supply interface | C13 220 VAC interface |
| Console interface | RJ45 Ethernet port |
| Digital I/O | 3 I/O, Single-ended/differential supported |
| Lighting output connector | 18MF-5B (female) |
| Dimension | 225.5 mm × 224 mm × 80.2 mm |
| Shell material | Aluminum alloy housing |
| Weight | 2.35 kg |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Cooling mode | Fan cooling |
| Certification | CE, KC |
| Shipping weight (estimated) | 3.39 kg |
