Spot lights

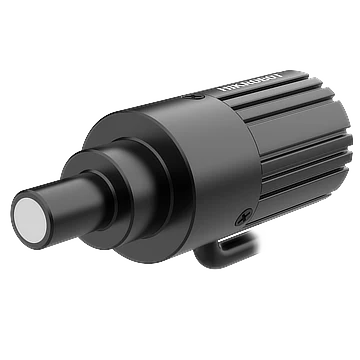

Spot Light, 8 x 3 mm, Yellow (LS-LDSS-H-8-3-Y)
Model LS-LDSS-H-8-3-Y
Spot Light, 8 x 3 mm, Yellow. The light outlet adopts efficient light-guiding design and highlight LED. Adopts compact size and high heat-dissipation structural design.
Features
- The light outlet adopts efficient light-guiding design and highlight LED.
- Adopts compact size and high heat-dissipation structural design.
- Can be matched with telecentric series lenses.
Specifications
| Model | LS-LDSS-H-8-3-Y |
|---|---|
| Color | Yellow |
| Center illuminance/irradiance | > 20K lux@WD=100 mm |
| Best working distance | 65 ~ 200 mm |
| Wavelength | 580 ~ 595 nm |
| Power | 2 W |
| Connector type | SMR-03V-B |
| Dimension | 59 mm × Ø24 mm |
| Optical outlet diameter | Ø8 mm |
| Weight | 75 g |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Safety class | No danger |
| Shipping weight (estimated) | 0.20 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Spot lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LDSS-H-8-3-W | 8 x 3 mm, White | 2 W | $139.00 | 4 in stock | View |
| LS-LDSS-H-8-3-R | 8 x 3 mm, Red | 1.7 W | $139.00 | 2 in stock | View |
| LS-LDSS-H-8-3-B | 8 x 3 mm, Blue | 2.1 W | $139.00 | 2 in stock | View |
| LS-LDSS-H-8-3-G | 8 x 3 mm, Green | 2.1 W | $139.00 | 3 in stock | View |
