Spot lights

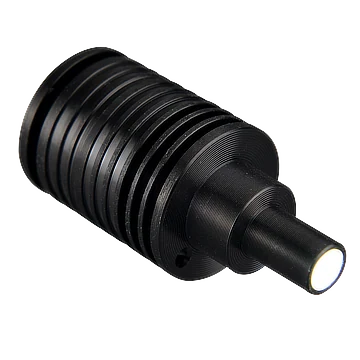

Spot Light, 24 mm dia., Blue (LS-LDSS-8-3-B)
Model LS-LDSS-8-3-B
Spot Light, 24 mm dia., Blue. High-power LEDs for high brightness One-piece aluminum alloy body for efficient heat dissipation
Features
- High-power LEDs for high brightness
- One-piece aluminum alloy body for efficient heat dissipation
- Compatible with mainstream telecentric lenses; custom non-standard sizes available
Specifications
| Model | LS-LDSS-8-3-B |
|---|---|
| Color | Blue |
| Wavelength | 465 nm |
| Connector type | SMR-03V-B |
| Power | 2.8 W |
| Cable length | 500 mm |
| Dimension | Φ24 mm × 59 mm |
| Outer dimension | Φ24 mm |
| Emitting area outer diameter | Φ6 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Classic spot lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LDSS-8-3-UV365 | 24 mm dia., UV 365 nm | 1.3 W | $209.00 | 3 in stock | View |
| LS-LDSS-8-3-IR850 | 24 mm dia., IR 850 nm | 2.5 W | $209.00 | 2 in stock | View |
| LS-LDSS-8-3-R | 24 mm dia., Red | 1.8 W | $209.00 | 3 in stock | View |
| LS-LDSS-8-3-W | 24 mm dia., White | 2.5 W | $209.00 | 3 in stock | View |
| LS-LDSS-30-5-B | 30 mm dia., Blue | 5 W | $239.00 | 4 in stock | View |
| LS-LDSS-30-5-IR740 | 30 mm dia., IR 740 nm | 3 W | $239.00 | 3 in stock | View |
