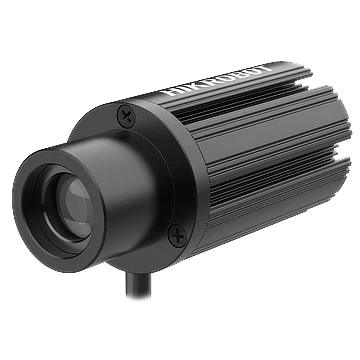

Spot Light, 20 x 6 mm, White (LS-LDFS-H-20-6-W)
Model LS-LDFS-H-20-6-W
Spot Light, 20 x 6 mm, White. Round direct light with uniform illuminance in the central emitting area High light-concentration design
Features
- Round direct light with uniform illuminance in the central emitting area
- High light-concentration design
- Ultra-compact size for very tight installation spaces
Specifications
| Model | LS-LDFS-H-20-6-W |
|---|---|
| Color | White |
| Center illuminance | 65 ~ 200 mm |
| Best working distance | ≥ 140k lux@WD=100 mm |
| Color temperature | 6000 ~ 7000K |
| Power | 3.2 W |
| Connector type | SMR-03V-B |
| Input current | 1100 mA |
| Dimension | 64.5 mm × Ø29 mm |
| Optical outlet diameter | Ø20 mm |
| Weight | 110 g |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Safety class | RG2 |
| Safety distance | 1.35 m |
| Shipping weight (estimated) | 0.25 kg |
