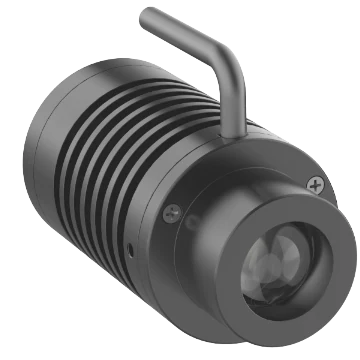

Spot Light, 20 x 10 mm, White (LS-LDFM-H-20-10-W)
Model LS-LDFM-H-20-10-W
Spot Light, 20 x 10 mm, White. Provides round direct light source to achieve uniform illumination in the center area. Adopts a high focusing design with high brightness, surface illuminance (center) > 2000K lux.
Features
- Provides round direct light source to achieve uniform illumination in the center area.
- Adopts a high focusing design with high brightness, surface illuminance (center) > 2000K lux.
- Features a compact size, suitable for extremely narrow installation space.
Specifications
| Model | LS-LDFM-H-20-10-W |
|---|---|
| Color | White |
| Center illuminance | > 400K lux@WD=100 mm |
| Best working distance | 50 ~ 500 mm |
| Color temperature | 6000 ~ 7000K |
| Power | 9 W |
| Connector type | 12M-5A |
| Dimension | 75.3 mm × Ø40 mm |
| Optical outlet diameter | Ø18.5 mm |
| Weight | 0.1 kg |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 80°C (–4 °F to 176 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Safety class | RG2 |
| Safety distance | 5.40 m |
| Shipping weight (estimated) | 0.24 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the High-brightness spot lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LDFM-H-20-5-IR850 | 20 x 5 mm, IR 850 nm | 5 W | $189.00 | 4 in stock | View |
