Coaxial lights

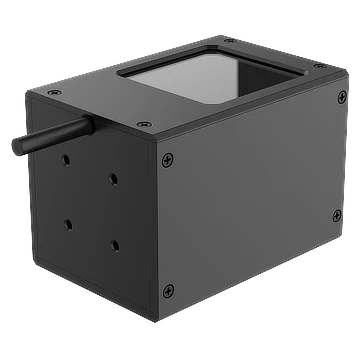

Coaxial Light, 50 x 50 mm, Blue (LS-LCDS-H-50-50-B)
Model LS-LCDS-H-50-50-B
Coaxial Light, 50 x 50 mm, Blue. Features special beam splitter design and improved light efficiency. Features efficient heat dissipation and extended service life.
Features
- Features special beam splitter design and improved light efficiency.
- Features efficient heat dissipation and extended service life.
Specifications
| Model | LS-LCDS-H-50-50-B |
|---|---|
| Color | Blue |
| Center illuminance/irradiance | ≥ 8000 lux |
| Wavelength | 465 nm |
| Power | 7 W |
| Connector type | SMR-03V-B |
| Dimension | 79 mm × 59.7 mm × 56 mm |
| Emitting area dimension | 50 mm × 50 mm |
| Weight | 250 g |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse plate included | Included |
| Safety class | RG1 |
| Safety distance | 0.50 m |
| Shipping weight (estimated) | 0.45 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Coaxial lights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LCDS-H-30-30-W | 30 x 30 mm, White | 3.3 W | $89.00 | 4 in stock | View |
| LS-LCDS-H-30-30-B | 30 x 30 mm, Blue | 3.6 W | $89.00 | 2 in stock | View |
| LS-LCDS-H-30-30-R | 30 x 30 mm, Red | 2.2 W | $89.00 | 4 in stock | View |
| LS-LCDS-H-40-40-W | 40 x 40 mm, White | 5.4 W | $109.00 | 3 in stock | View |
| LS-LCDS-H-40-40-B | 40 x 40 mm, Blue | 5.9 W | $109.00 | 2 in stock | View |
| LS-LCDS-H-40-40-R | 40 x 40 mm, Red | 4.1 W | $109.00 | 2 in stock | View |
| LS-LCDS-H-50-50-W | 50 x 50 mm, White | 5.5 W | $129.00 | 4 in stock | View |
| LS-LCDS-H-50-50-R | 50 x 50 mm, Red | 4.7 W | $129.00 | 3 in stock | View |
| LS-LCDS-H-60-60-W | 60 x 60 mm, White | 9.6 W | $159.00 | 3 in stock | View |
| LS-LCDS-H-60-60-B | 60 x 60 mm, Blue | 8.7 W | $159.00 | 5 in stock | View |
| LS-LCDS-H-60-60-R | 60 x 60 mm, Red | 6.7 W | $159.00 | 5 in stock | View |
| LS-LCDS-H-70-70-W | 70 x 70 mm, White | 10.8 W | $189.00 | 4 in stock | View |
| LS-LCDS-H-70-70-IR850 | 70 x 70 mm, IR 850 nm | 12.6 W | $189.00 | 3 in stock | View |
