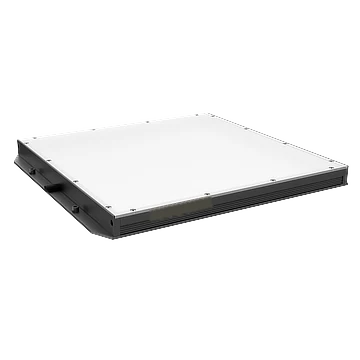

Flat Backlight, 200 x 200 mm, Red (LS-LBSS-H-200-200-R2)
Model LS-LBSS-H-200-200-R2
Flat Backlight, 200 x 200 mm, Red. Adopts high-density array LED design, and provides excellent lighting uniformity. Provides side mounting lugs to achieve flexible installation.
Features
- Adopts high-density array LED design, and provides excellent lighting uniformity.
- Provides side mounting lugs to achieve flexible installation.
Specifications
| Model | LS-LBSS-H-200-200-R2 |
|---|---|
| Color | Red |
| Center illuminance/irradiance | ≥ 18000 lux@100 mm |
| Wavelength | 625 nm |
| Power | 48.6 W |
| Input voltage | 24 VDC |
| Connector type | SMR-03V-B |
| Dimension | 232 mm × 213 mm × 18 mm |
| Emitting area dimension | 200 mm × 200 mm |
| Weight | 0.8 kg |
| Cable length | 1 m |
| Cooling mode | Natural cooling |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 1.22 kg |
