Backlights

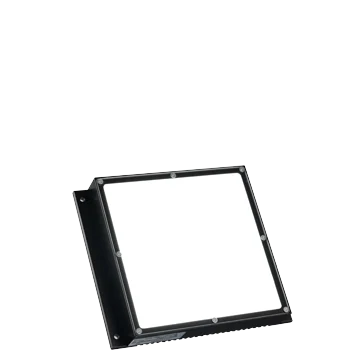

Flat Backlight, 232 x 262 mm, White (LS-LBPS-250-200-W)
Model LS-LBPS-250-200-W
Flat Backlight, 232 x 262 mm, White. Wide-angle SMD LEDs in a high-density layout for good uniformity Added parallel film for better light directionality
Features
- Wide-angle SMD LEDs in a high-density layout for good uniformity
- Added parallel film for better light directionality
- Available in custom sizes and wavelengths
- Multiple mounting options
Specifications
| Model | LS-LBPS-250-200-W |
|---|---|
| Color | White |
| Color temperature | 6000~7000K |
| Connector type | SMR-03V-B |
| Power | 51.9 W |
| Cable length | 500 mm |
| Dimension | 232 mm × 262 mm × 20.5 mm |
| Emitting area dimension | 250 mm × 200 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 115 backlights of this range that state a voltage are rated 24 V |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Flat backlights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LBPS-27-27-W | 37 x 37 mm, White | 1.6 W | $79.00 | 4 in stock | View |
| LS-LBPS-50-50-W | 78 x 64 mm, White | 3.8 W | $89.00 | 2 in stock | View |
| LS-LBPS-50-50-B | 78 x 64 mm, Blue | 3.2 W | $89.00 | 2 in stock | View |
| LS-LBPS-100-50-B | 135 x 65 mm, Blue | 6.5 W | $99.00 | 4 in stock | View |
| LS-LBPS-100-100-W | 135 x 115 mm, White | 19.2 W | $109.00 | 4 in stock | View |
| LS-LBPS-150-100-W | 180 x 114 mm, White | 26.4 W | $129.00 | 4 in stock | View |
| LS-LBPS-120-120-R | 155 x 135 mm, Red | 11 W | $129.00 | 4 in stock | View |
| LS-LBPS-120-120-W | 155 x 135 mm, White | 19.5 W | $129.00 | 4 in stock | View |
