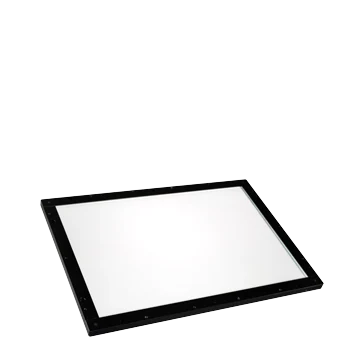

Flat Backlight, 432 x 332 mm, White (LS-LBFH-400-300-W)
Model LS-LBFH-400-300-W
Flat Backlight, 432 x 332 mm, White. Ultra-thin profile Special light-guide material for good uniformity
Features
- Ultra-thin profile
- Special light-guide material for good uniformity
- Added parallel film for better light directionality
- Available in custom sizes and wavelengths
Specifications
| Model | LS-LBFH-400-300-W |
|---|---|
| Color | White |
| Color temperature | 6000~7000K |
| Connector type | SMR-03V-B |
| Power | 10.6 W |
| Cable length | 500 mm |
| Dimension | 432 mm × 332 mm × 14.5 mm |
| Emitting area dimension | 400 mm × 300 mm |
| Humidity | 20% to 85% RH (non-condensing) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 115 backlights of this range that state a voltage are rated 24 V |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Flat backlights series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LBFH-50-50-W | 82 x 82 mm, White | 3.4 W | $89.00 | 4 in stock | View |
| LS-LBFH-100-100-W | 132 x 132 mm, White | 3.3 W | $109.00 | 3 in stock | View |
| LS-LBFH-200-150-W | 232 x 182 mm, White | 4.6 W | $189.00 | 5 in stock | View |
| LS-LBFH-300-200-W | 332 x 232 mm, White | 4.1 W | $289.00 | 4 in stock | View |
