Backlights

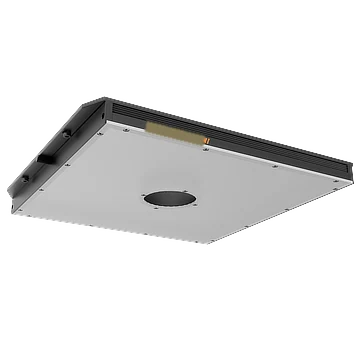

Flat Backlight with Center Hole, 620 x 620 mm, Red (LS-LBES-H-620-620-R2)
Model LS-LBES-H-620-620-R2
Flat Backlight with Center Hole, 620 x 620 mm, Red. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.
Features
- Adopts high-density array LED design.
- Adopts middle opening design (circular hole/square hole) to achieve front lighting.
- Provides side mounting lugs to achieve flexible installation.
Specifications
| Model | LS-LBES-H-620-620-R2 |
|---|---|
| Color | Red |
| Center illuminance/irradiance | ≥ 50000 lux@600 mm |
| Wavelength | 625 nm |
| Power | 237.1 W |
| Input voltage | 24 VDC |
| Connector type | Dual-channel 19M-2A |
| Dimension | 696 mm × 650 mm × 25 mm |
| Emitting area dimension | 620 mm × 620 mm |
| Bore dimension | Ø 50 mm |
| Weight | 10 kg |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 14.10 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Flat lights with center hole series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LBES-H-200-200-W2 | 200 x 200 mm, White | 48 W | $219.00 | 4 in stock | View |
| LS-LBES-H-250-200-B2 | 250 x 200 mm, Blue | 48 W | $259.00 | 3 in stock | View |
| LS-LBES-H-250-200-R2 | 250 x 200 mm, Red | 45.7 W | $259.00 | 2 in stock | View |
| LS-LBES-H-250-200-W2 | 250 x 200 mm, White | 58.6 W | $259.00 | 3 in stock | View |
| LS-LBES-H-300-200-IR940 | 300 x 200 mm, IR 940 nm | 43.2 W | $289.00 | 3 in stock | View |
| LS-LBES-H-300-200-B2 | 300 x 200 mm, Blue | 46.7 W | $289.00 | 5 in stock | View |
| LS-LBES-H-300-200-W2 | 300 x 200 mm, White | 54.6 W | $289.00 | 4 in stock | View |
| LS-LBES-H-250-250-B2 | 250 x 250 mm, Blue | 48.3 W | $299.00 | 3 in stock | View |
| LS-LBES-H-250-250-R2 | 250 x 250 mm, Red | 42.5 W | $299.00 | 4 in stock | View |
| LS-LBES-H-250-250-W2 | 250 x 250 mm, White | 55.2 W | $299.00 | 2 in stock | View |
| LS-LBES-H-300-300-B2 | 300 x 300 mm, Blue | 65.2 W | $399.00 | 3 in stock | View |
| LS-LBES-H-300-300-R2 | 300 x 300 mm, Red | 60.2 W | $399.00 | 2 in stock | View |
| LS-LBES-H-300-300-W2 | 300 x 300 mm, White | 81.6 W | $399.00 | 2 in stock | View |
| LS-LBES-H-400-300-B2 | 400 x 300 mm, Blue | 75 W | $509.00 | 5 in stock | View |
| LS-LBES-H-400-300-R2 | 400 x 300 mm, Red | 63.4 W | $509.00 | 5 in stock | View |
| LS-LBES-H-400-300-W2 | 400 x 300 mm, White | 92.1 W | $509.00 | 5 in stock | View |
| LS-LBES-H-450-320-B2 | 450 x 320 mm, Blue | 170.5 W | $589.00 | 4 in stock | View |
| LS-LBES-H-450-320-R2 | 450 x 320 mm, Red | 162.1 W | $589.00 | 3 in stock | View |
| LS-LBES-H-450-320-W2 | 450 x 320 mm, White | 218.3 W | $589.00 | 4 in stock | View |
| LS-LBES-H-600-400-B2 | 600 x 400 mm, Blue | 152.3 W | $939.00 | 4 in stock | View |
| LS-LBES-H-600-400-R2 | 600 x 400 mm, Red | 137.3 W | $939.00 | 3 in stock | View |
| LS-LBES-H-600-400-W2 | 600 x 400 mm, White | 194 W | $939.00 | 2 in stock | View |
| LS-LBES-H-620-620-B2 | 620 x 620 mm, Blue | 233.9 W | $1,449.00 | 2 in stock | View |
| LS-LBES-H-620-620-W2 | 620 x 620 mm, White | 298.8 W | $1,449.00 | 5 in stock | View |
See all 42 models in the Flat lights with center hole series
