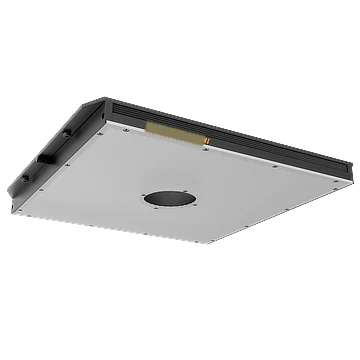

Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm (LS-LBES-H-250-250-IR940)
Model LS-LBES-H-250-250-IR940
Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.
Features
- Adopts high-density array LED design.
- Adopts middle opening design (circular hole/square hole) to achieve front lighting.
- Provides side mounting lugs to achieve flexible installation.
Specifications
| Model | LS-LBES-H-250-250-IR940 |
|---|---|
| Color | Infrared |
| Wavelength | 940 nm |
| Center illuminance/irradiance | ≥ 5000 uW/cm2@200 mm |
| Power | 52 W |
| Connector type | SMR-03V-B |
| Dimension | 282 mm × 263 mm × 19 mm |
| Emitting area dimension | 250 mm × 250 mm |
| Bore dimension | Φ50 mm |
| Weight | 1.1 kg |
| Cable length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 1.64 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Flat lights with center hole series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LBES-H-200-200-R2 | 200 x 200 mm, Red | 34.1 W | $219.00 | 5 in stock | View |
| LS-LBES-H-200-200-W2 | 200 x 200 mm, White | 48 W | $219.00 | 4 in stock | View |
| LS-LBES-H-250-200-W | 250 x 200 mm, White | 53 W | Price on request | 3 in stock | View |
| LS-LBES-H-250-200-B2 | 250 x 200 mm, Blue | 48 W | $259.00 | 3 in stock | View |
| LS-LBES-H-250-200-R2 | 250 x 200 mm, Red | 45.7 W | $259.00 | 2 in stock | View |
| LS-LBES-H-250-200-W2 | 250 x 200 mm, White | 58.6 W | $259.00 | 3 in stock | View |
| LS-LBES-H-300-200-W | 300 x 200 mm, White | 54 W | Price on request | 2 in stock | View |
| LS-LBES-H-300-200-IR940 | 300 x 200 mm, IR 940 nm | 43.2 W | $289.00 | 3 in stock | View |
| LS-LBES-H-300-200-B2 | 300 x 200 mm, Blue | 46.7 W | $289.00 | 5 in stock | View |
| LS-LBES-H-300-200-R2 | 300 x 200 mm, Red | 45.9 W | Price on request | 3 in stock | View |
| LS-LBES-H-300-200-W2 | 300 x 200 mm, White | 54.6 W | $289.00 | 4 in stock | View |
| LS-LBES-H-250-250-R | 250 x 250 mm, Red | 48 W | Price on request | 5 in stock | View |
| LS-LBES-H-250-250-B2 | 250 x 250 mm, Blue | 48.3 W | $299.00 | 3 in stock | View |
| LS-LBES-H-250-250-R2 | 250 x 250 mm, Red | 42.5 W | $299.00 | 4 in stock | View |
| LS-LBES-H-250-250-W2 | 250 x 250 mm, White | 55.2 W | $299.00 | 2 in stock | View |
| LS-LBES-H-300-300-B2 | 300 x 300 mm, Blue | 65.2 W | $399.00 | 3 in stock | View |
| LS-LBES-H-300-300-R2 | 300 x 300 mm, Red | 60.2 W | $399.00 | 2 in stock | View |
| LS-LBES-H-300-300-W2 | 300 x 300 mm, White | 81.6 W | $399.00 | 2 in stock | View |
| LS-LBES-H-400-300-W | 400 x 300 mm, White | 83 W | Price on request | 5 in stock | View |
| LS-LBES-H-400-300-B2 | 400 x 300 mm, Blue | 75 W | $509.00 | 5 in stock | View |
| LS-LBES-H-400-300-R2 | 400 x 300 mm, Red | 63.4 W | $509.00 | 5 in stock | View |
| LS-LBES-H-400-300-W2 | 400 x 300 mm, White | 92.1 W | $509.00 | 5 in stock | View |
| LS-LBES-H-450-320-W | 450 x 320 mm, White | 198 W | Price on request | 3 in stock | View |
| LS-LBES-H-450-320-B2 | 450 x 320 mm, Blue | 170.5 W | $589.00 | 4 in stock | View |
See all 53 models in the Flat lights with center hole series
