Backlights

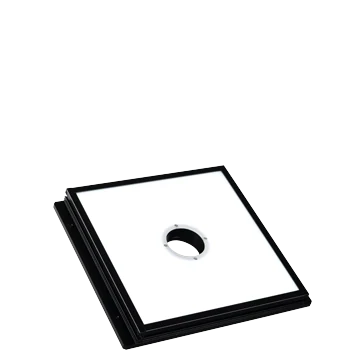

Flat Backlight with Center Hole, 192 x 192 mm, White (LS-LBES-180-180-W)
Model LS-LBES-180-180-W
Flat Backlight with Center Hole, 192 x 192 mm, White. Wide-angle SMD LEDs in a high-density layout for good uniformity Available in custom sizes and wavelengths
Features
- Wide-angle SMD LEDs in a high-density layout for good uniformity
- Available in custom sizes and wavelengths
- Multiple mounting options
Specifications
| Model | LS-LBES-180-180-W |
|---|---|
| Color | White |
| Color temperature | 6000 ~ 7000K |
| Connector type | SMR-03V-B |
| Power | 40 W |
| Cable length | 500 mm |
| Dimension | 192 mm × 192 mm × 19 mm |
| Bore dimension | Φ45 mm |
| Emitting area dimension | 180 mm × 180 mm |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Diffuse plate included | Included |
| Shipping weight (estimated) | 0.66 kg |
| Supply voltage (derived) | 24 V DC, derived: all 115 backlights of this range that state a voltage are rated 24 V |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Classic flat lights with center hole series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-LBES-180-180-B | 192 x 192 mm, Blue | 40 W | $189.00 | 4 in stock | View |
| LS-LBES-240-240-W | 274 x 254 mm, White | 46.44 W | $279.00 | 3 in stock | View |
| LS-LBES-300-300-W | 315 x 315 mm, White | 65.52 W | $399.00 | 3 in stock | View |
| LS-LBES-450-320-W | 465 x 363 mm, White | 165.6 W | $589.00 | 3 in stock | View |
| LS-LBES-620-620-W | 670 x 670 mm, White | 230.4 W | $1,449.00 | 3 in stock | View |
