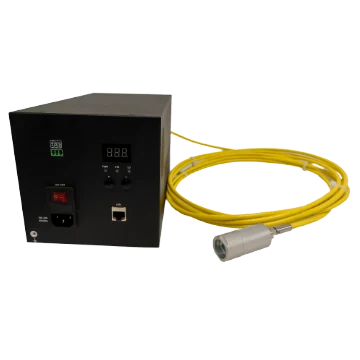

Split-type laser light, 808nm, 50w, Line-shaped beam spot (LS-LAS-808-50W-LV0)
Model LS-LAS-808-50W-LV0
Split-type laser light, 808nm, 50w, Line-shaped beam spot. 808 nm wavelength, line-shaped beam Separate laser head and control box for compact installation spaces
Features
- 808 nm wavelength, line-shaped beam
- Separate laser head and control box for compact installation spaces
- High-precision optical path and circuit control for stable, reliable performance
- Parameters adjustable from the panel or software for rich, flexible functionality
- Laser calibration mounting accessories improve on-site setup efficiency
Specifications
| Model | LS-LAS-808-50W-LV0 |
|---|---|
| Best working distance | 240 ~320 mm |
| Field of view width | 210 ~ 270 mm |
| Drive mode | Constant-current drive |
| Laser power | 0~ 50 W |
| Laser power adjustment | External buttons, Software adjustment |
| Field of view | 75° |
| Power stability | >95% |
| Spot shape | Line-shaped light spot |
| Data interface | Fast Ethernet port |
| Digital I/O | 1 inputs, Single-ended/differential supported |
| Power connector | C13 socket |
| Input voltage | 100~240 VAC, 50/60 Hz |
| Input current | 4 A(100 VAC), 2 A(240 VAC) |
| Total power | 260 W |
| Dimension | 312.3 mm × 151.5 mm × 155.8 mm (with feet) |
| Weight | Approx. 6 kg |
| Shell material | Black galvanized steel + aluminum alloy |
| Cooling mode | TEC + fan cooling + heat sink |
| Installation method | Desktop placement, Screw mounting |
| Cable diameter | 6 mm |
| Min. bending radius | 88 mm |
| Ingress protection | IP20 (with lens and cables properly installed) |
| Temperature | Operating temperature: 0 to 30 °C, Storage temp.: -30 to 80 °C |
| Humidity | 20% RH to 80% RH (no condensation) |
| Laser safety class | Class 4 |
| Wavelength | 808±5 nm |
| Beam divergence angle | 75° |
| Pulse width | 1 s |
| Maximum power | 50 W |
| Nominal ocular hazard distance (NOHD) | 14.1 m |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 8.50 kg |
