Laboratory lighting system (LS-LABORATORYLIGHTINGSYSTEM)
Model LS-LABORATORYLIGHTINGSYSTEM
Laboratory machine vision lighting system combining an industrial PC, industrial camera, 25mm lens, experimental stand, two light sources, light controller, monitor and intelligent vision software. Listed products are optional and customization is supported.
Features
- Contour search localization
- Character recognition and extraction
- Colour detection
- Bar code / 2D code recognition: multi-code reading and proofreading in the selected area, various bar code and 2D code formats, dot 2D codes
- Concentric circle detection with alarm when exceeding the set value; detection accuracy 0.01mm
- Line order detection for wire and cable, fiber, connector, wiring head: line order, position misalignment and missing line
Specifications

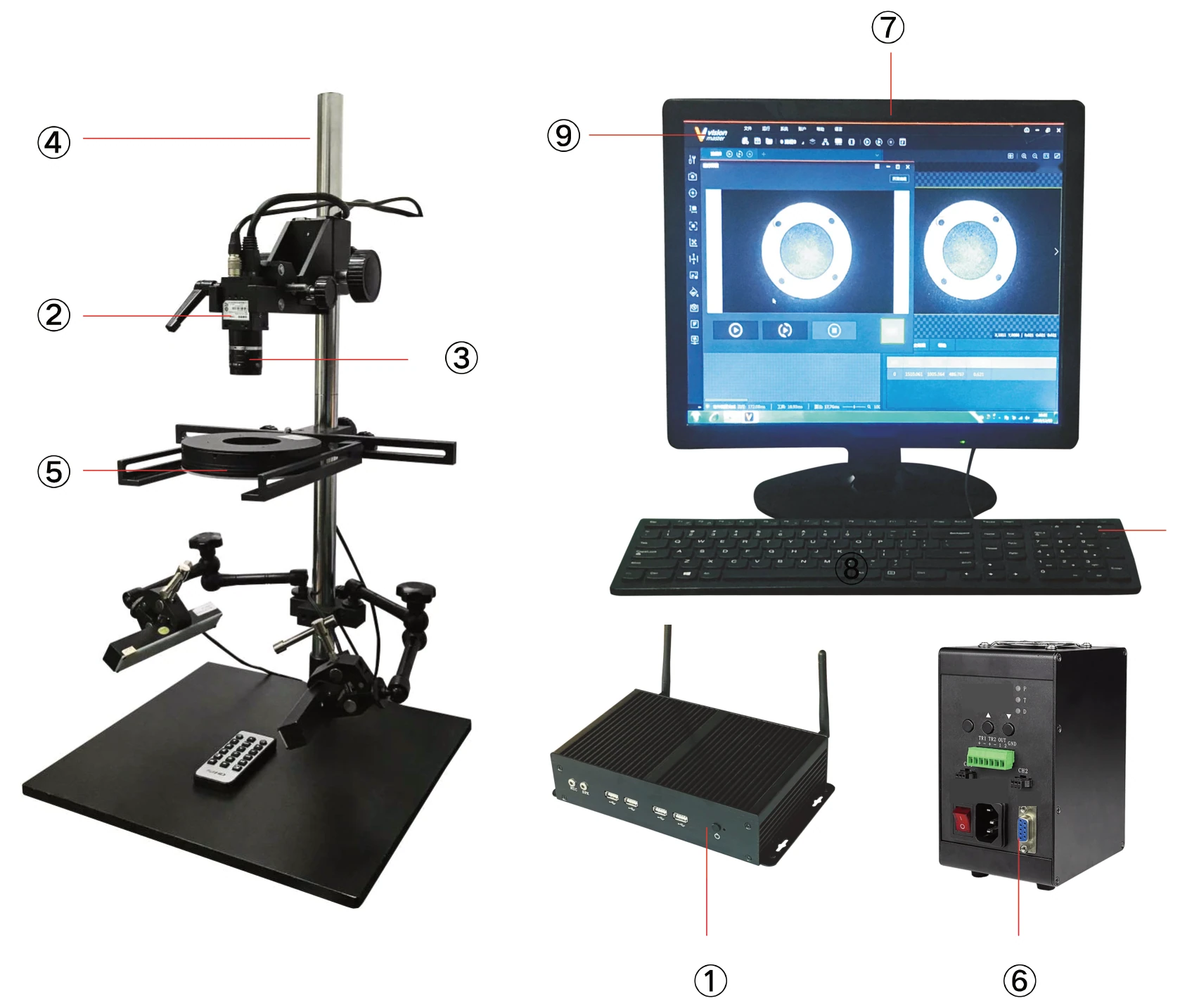

| Model | LS-LABORATORYLIGHTINGSYSTEM |
|---|---|
| Note | Listed products are optional; customization supported |
| (1) Industrial personal computer | I5 4200U processor, 4G running memory, 120G mobile hard disk; model: LS-I5-4200U |
| (2) Industrial camera | 600W rolling shutter; model: MV-CU060-10GM |
| (3) Lens | 25mm lens; model: LS-FA2501C |
| (4) Stand | Experimental scaffold |
| (5) Light source 1 | Model: FL100100-W-24 |
| (5) Light source 2 | Model: RND12050A900W-24 |
| (6) Light controller | Model: LS-DCS2.0-2C012W-24PS |
| (7) Monitor | 17 inch monitor |
| (8) Input | Mouse and keyboard |
| (9) Software | Intelligent vision software; model: Vision Master |
| Shipping weight | 0.59 kg |
Applications
- Contour search localization
- Character recognition and extraction (OCR)
- Colour detection
- Bar code and 2D code reading
- Concentric circle detection
- Wire/cable line order detection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
