Home / Lenses / Telecentric lenses / K Series Object-Side Telecentric lenses

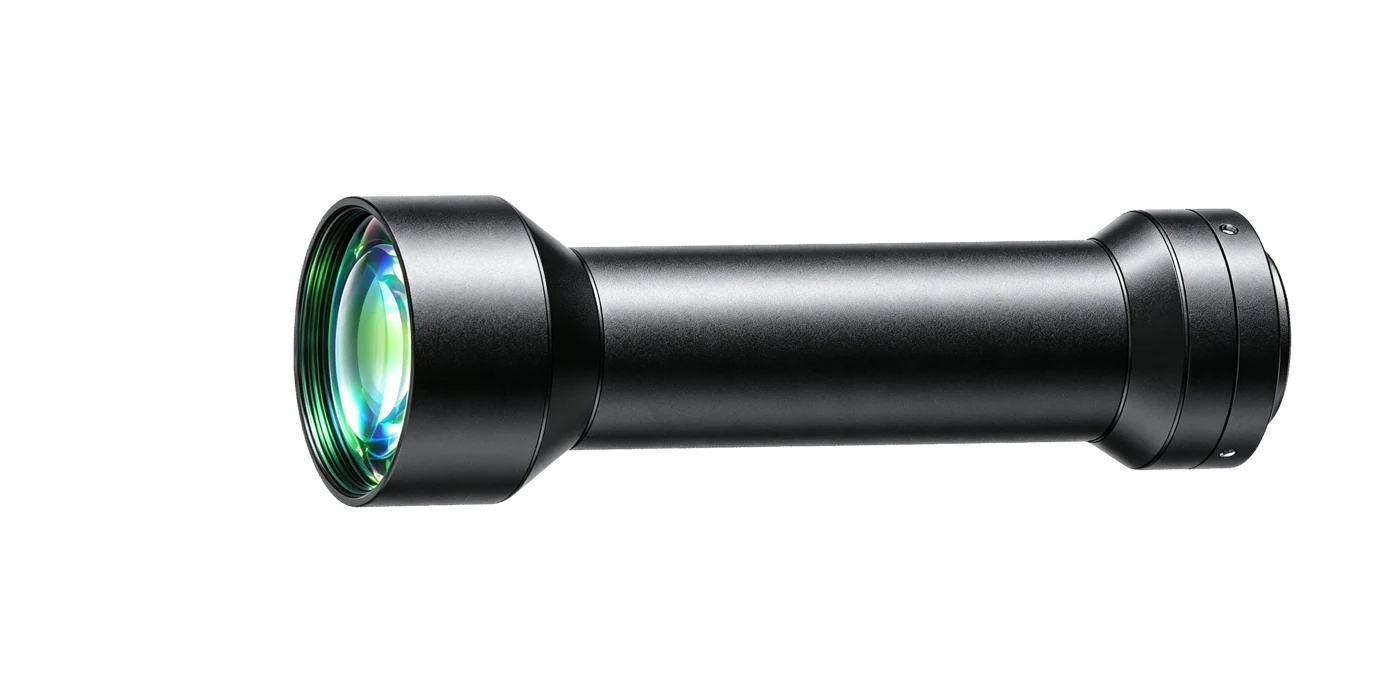

Object-Side Telecentric Lens, 0.7x, 105 mm WD, 1.1" (LS-KT-07-105-V3)

Telecentric lenses

Object-Side Telecentric Lens, 0.7x, 105 mm WD, 1.1" (LS-KT-07-105-V3)

Model LS-KT-07-105-V3

Object-Side Telecentric Lens, 0.7x, 105 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"

$969.00 USDIn stock · 5 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-KT-07-105-V33D model (STEP, ZIP) - LS-KT-07-105-V3

Features

  • Excellent image quality with an optimized fixed-magnification design
  • Supports cameras up to 1.1"

Specifications

ModelLS-KT-07-105-V3
Magnification0.7
Working distance105 mm
Image size1.1"
F-numberF7
Depth of field1.1 mm
Distortion≤ 0.03%
Object-side resolution6.7 μm
Object-side telecentricity≤ 0.03°
Connector typeC-Mount
Coaxial lightNot supported
Dimension131.4 mm × Φ44 mm
Temperature-10~50°C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the K Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-KT-05-1800.5x, 180 mm WD, 1.1" $829.00 3 in stockView
LS-KS-05-3630.5x, 363 mm WD, 1.1" $829.00 3 in stockView
LS-KS-045-6100.45x, 610 mm WD, 1.1" $829.00 4 in stockView
LS-KS-05-3160.5x, 316 mm WD, 1.2" $829.00 5 in stockView
LS-KT-063-150C0.63x, 150 mm WD, 1.1" $869.00 3 in stockView
LS-KT-05-110-V30.5x, 110 mm WD, 1.1" $929.00 3 in stockView
LS-KT-05-110C-V30.5x, 110 mm WD, 1.1" $929.00 4 in stockView
LS-KT-05-110-V3-G0.5x, 110 mm WD, 1.1" $929.00 4 in stockView
LS-KY-03-1930.3x, 193 mm WD, 1" $969.00 5 in stockView
LS-KT-066-1100.66x, 110 mm WD, 1" $969.00 2 in stockView
LS-KT-063-1100.63x, 110 mm WD, 1.1" $969.00 4 in stockView
LS-KT-03-1500.3x, 150 mm WD, 1.1" $969.00 3 in stockView
LS-KT-05-2200.5x, 220 mm WD, 1.1" $999.00 2 in stockView
LS-KT10-05-2200.5x, 220 mm WD, 1" $999.00 4 in stockView
LS-KT-05-220-G0.5x, 220 mm WD, 1.1" $999.00 4 in stockView
LS-KT-05-220C0.5x, 220 mm WD, 1.1" $999.00 2 in stockView
LS-KT-032-2200.32x, 220 mm WD, 1" $1,039.00 5 in stockView
LS-KT10-04-1100.4x, 110 mm WD, 1" $1,039.00 4 in stockView
LS-KT-04-1100.4x, 110 mm WD, 1.1" $1,039.00 5 in stockView
LS-KT-04-110-V30.4x, 110 mm WD, 1" $1,039.00 3 in stockView
LS-KS-04-6700.4x, 670 mm WD, 1.1" $1,089.00 3 in stockView
LS-KY-06-2200.6x, 220 mm WD, 1" $1,119.00 5 in stockView
LS-KT-055-2200.55x, 220 mm WD, 1.1" $1,119.00 4 in stockView
LS-KT-055-1900.55x, 190 mm WD, 1.1" $1,119.00 2 in stockView

See all 123 models in the K Series Object-Side Telecentric lenses series
