Machine vision lenses

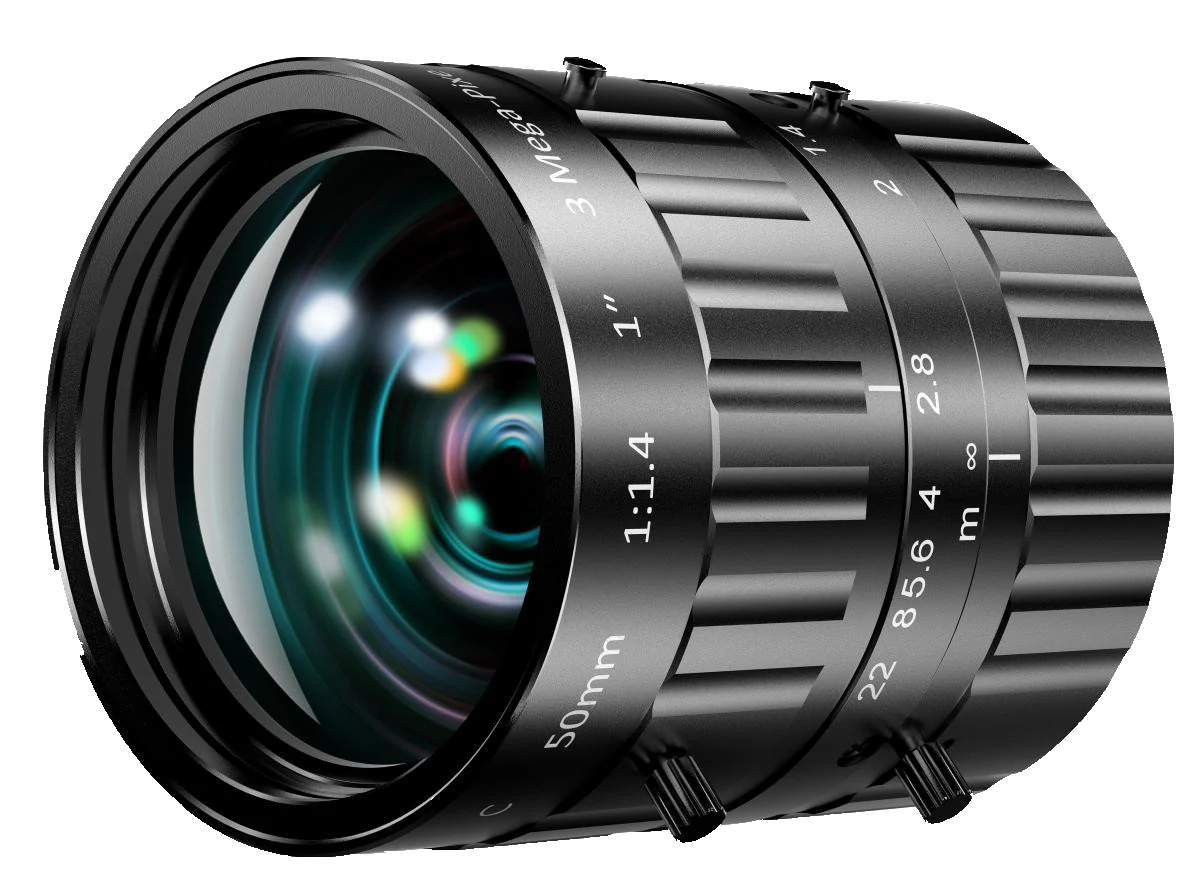

50mm, F1.4, 1", 900-1700nm, C-mount, SWIR lens (LS-KF5014M-3MP-NIR)
Model LS-KF5014M-3MP-NIR
50mm, F1.4, 1", 900-1700nm, C-mount, SWIR lens. Maximum sensor format 1'' Large-aperture design for high light throughput
Features
- Maximum sensor format 1''
- Large-aperture design for high light throughput
- Coating covers 900 nm–1700 nm with high infrared transmittance
Specifications
| Model | LS-KF5014M-3MP-NIR |
|---|---|
| Focal length | 50mm |
| F-number | F1.4 |
| Image size | 1” |
| Distortion | 0.6% |
| Minimum object distance | 0.5m |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M40.5×0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526mm |
| Dimension | Φ47.2×55.58mm |
| Weight | 210g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.39 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the SWIR Lens Series series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KF1216-5MP-NIR | $369.00 | 3 in stock | View | |
| LS-KF1614M-5MP-NIR-V2 | $389.00 | 5 in stock | View | |
| LS-KF2514M-5MP-NIR-V2 | $449.00 | 3 in stock | View | |
| LS-KF3514M-5MP-NIR | $449.00 | 5 in stock | View | |
| LS-AF2519M-M42-NIR | $449.00 | 4 in stock | View | |
| LS-AF4016M-M42-NIR | $489.00 | 3 in stock | View | |
| LS-AF5014M-M42-NIR | $489.00 | 4 in stock | View | |
| LS-KF10020M-5MP-NIR | $779.00 | 4 in stock | View |
