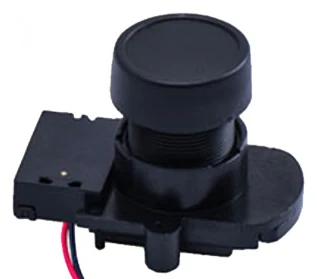

IR-cut removable filter switcher (ICR) for board/bullet/box cameras (LS-IRCUTREMOVABLEICR)

Lens accessories

IR-cut removable filter switcher (ICR) for board/bullet/box cameras (LS-IRCUTREMOVABLEICR)

Model LS-IRCUTREMOVABLEICR

IR-cut removable filter switcher (ICR) for board/bullet/box cameras. IR-cut removable filter for board, bullet and box cameras to improve imaging quality.

$39.00 USDIn stock · 5 available

Inventory updated Oct 14, 2026

0.21 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • Effective area 8.6 x 6.8 mm
  • Drive voltage 3.3-12 V
  • DC resistance 40 or 60 Ω
  • Hole distance 20 or 22 mm (option)
  • Center wavelength T=50% 650 nm ±10 nm
  • Pulse 100-500 ms
  • Life 100,000 times

Specifications

ModelLS-IRCUTREMOVABLEICR
Effective area8.6 x 6.8 mm
Drive voltage3.3~12 V
DC resistance40 & 60 Ω
Hole distance20 & 22 mm (option)
Center wavelengthT=50% 650 nm +/- 10%nm (as printed)
Pulse100~500 ms
Life100,000 times
Shipping weight (estimated)0.21 kg
