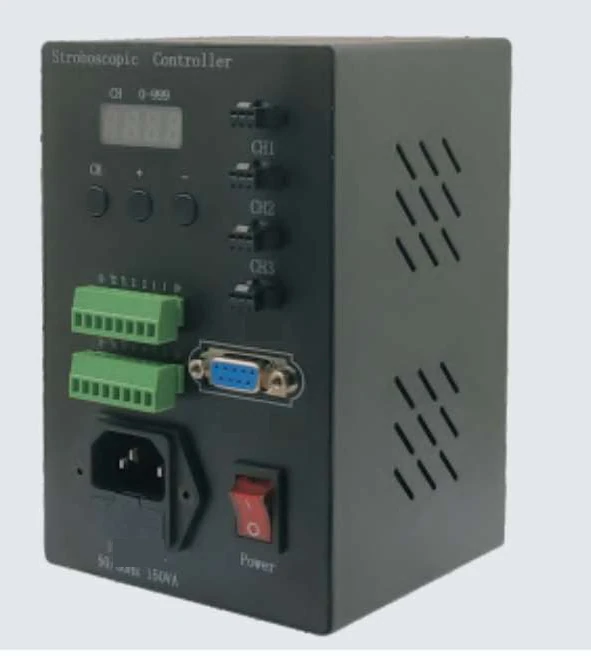

SPC strobe power supply controller, 4 ch (LS-HSPC24120D-4T)
Model LS-HSPC24120D-4T
The HSPC24120D-XT strobe digital controller drives LED lights with voltage pulses of a preset width. When the output is on its voltage is generally more than twice that of a normal controller (for 24 VDC LED lights it can reach 48 VDC) and the longest on time does not exceed 999 us, so it greatly raises the instantaneous brightness while the short on time limits LED heating, greatly extending light life.
Features
- Output voltage pulse width (light-on time) adjustable from 1 us to 999 us, with proportional setting
- Raises instantaneous light brightness to over 200% while extending light life; automatically outputs a camera trigger signal so the light and the camera capture are synchronised
- Works in external trigger mode (light on when triggered) or internal trigger mode (lit at a fixed frequency)
- Built-in overload auto-protection
Specifications
| Model | LS-HSPC24120D-4T |
|---|---|
| Input voltage | AC100-240V 50/60Hz |
| Output voltage | 48V |
| Control | Front-panel keys + RS232 serial port |
| Pulse width | 1-999 us |
| Channel / output | C4 O4 (4 channels, 4 outputs) |
| Single channel current | 4.2A (24V) |
| Total output current | 5A (24V) |
| Control (perform) | KEY buttons, RS232 serial port |
| Trigger input | Yes |
| Channels | 4 |
| Shipping weight | 0.70 kg |
