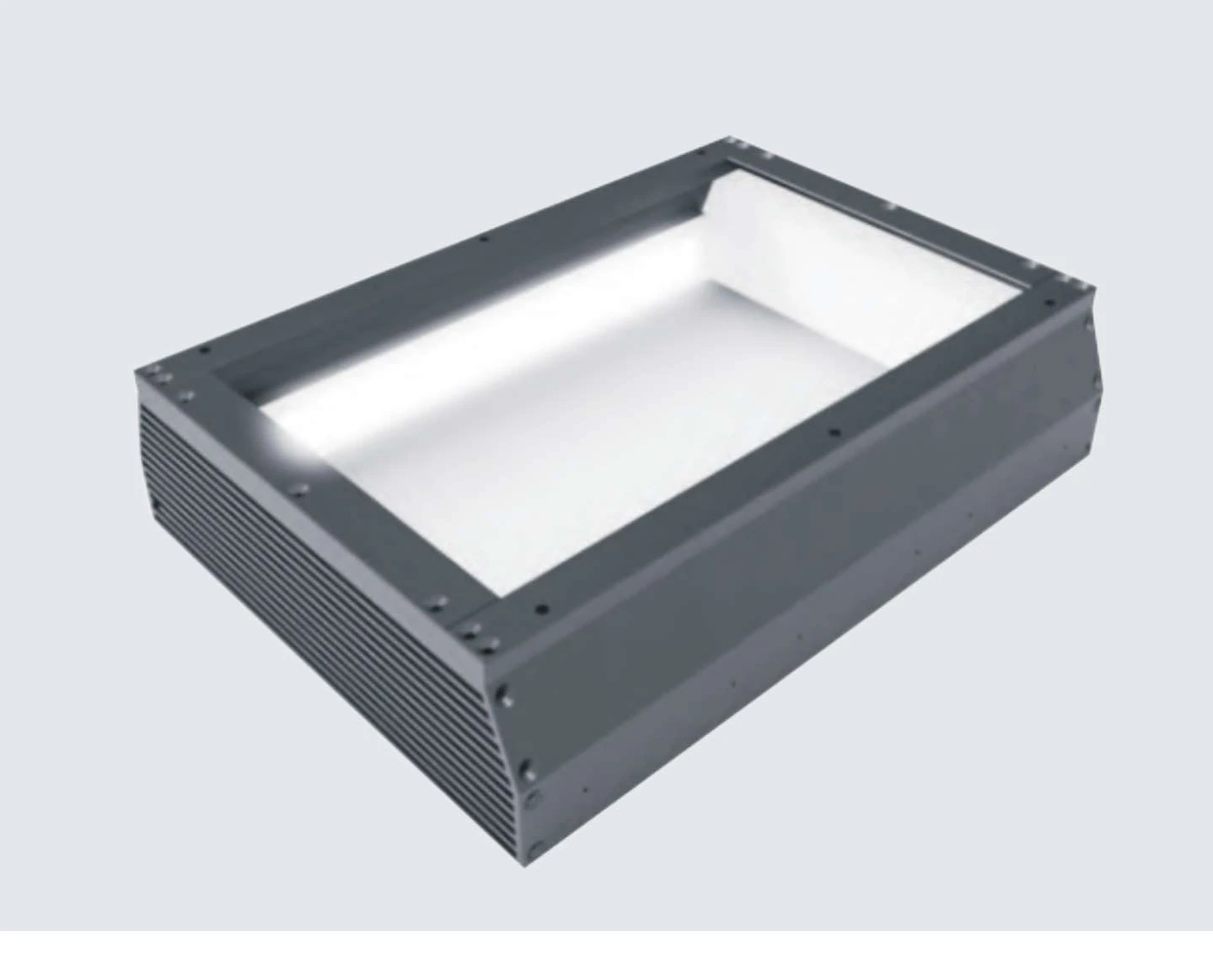

410 x 200 mm Four-sided shadowless light (HSP) (LS-HSP426246)
Model LS-HSP426246
Uses a unique illumination structure: LED light is diffused evenly by special optical material while a flexible circuit board fixes the illumination angle at 90 degrees; after refraction it lights the target area efficiently and evenly. Suited to large objects.
Features
- Unique structure, efficient and even illumination
- Suitable for large-area objects
Specifications
| Model | LS-HSP426246 |
|---|---|
| Cable length (mm) | 500 |
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Size (mm) | L 426 x W 246 |
| Power, green/blue/white (W) | 55 |
| Power, red (W) | 55 |
| Recommended controller | HDPC2465D |
| Emitting area (mm, drawing) | 410 x 200 |
| Shipping weight | 3.25 kg |
Applications
- Phone edge inspection
- Character recognition
- Colour inspection
- Phone housing screw presence inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
