Special lights

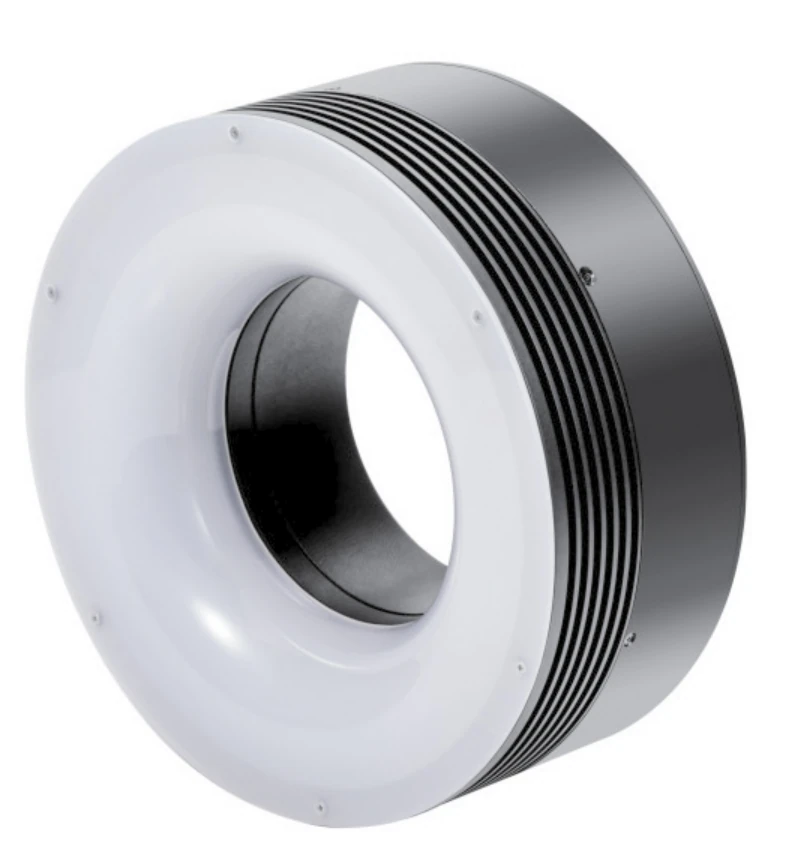

Multi-spectral sequencing ring light (HRM200-32-M) (LS-HRM200-32-M)
Model LS-HRM200-32-M
Ring light in the multi-channel sequencing series with eight wavelengths from 400 nm UV to 856 nm IR, DC 5 V input and an RS232 communication port.
Features
- Eight wavelengths: white 6500 K, UV 400 nm, blue 465 nm, green 530 nm, yellow 590 nm, red 650 nm, IR 730 nm, IR 856 nm
- RS232 communication port (socket) and DC power connector on the housing
Specifications
| Model | LS-HRM200-32-M |
|---|---|
| Current | 4 A |
| Power | 20 W |
| Input voltage | DC 5 V |
| Power connector | DC 5.5 x 2.1 female socket |
| Length (mm) | outer dia. 200 |
| Width (mm) | inner dia. 100 |
| Height (mm) | 85.3 |
| Wavelengths | white 6500 K / UV 400 nm / blue 465 nm / green 530 nm / yellow 590 nm / red 650 nm / IR 730 nm / IR 856 nm |
| Mounting (drawing) | 4-M4 depth 8 on dia. 192; 4-M3 depth 4 on dia. 110 |
| Housing height (drawing, mm) | 79.5 |
| Communication (drawing) | RS232 port (socket) |
| Shipping weight | 0.50 kg |
