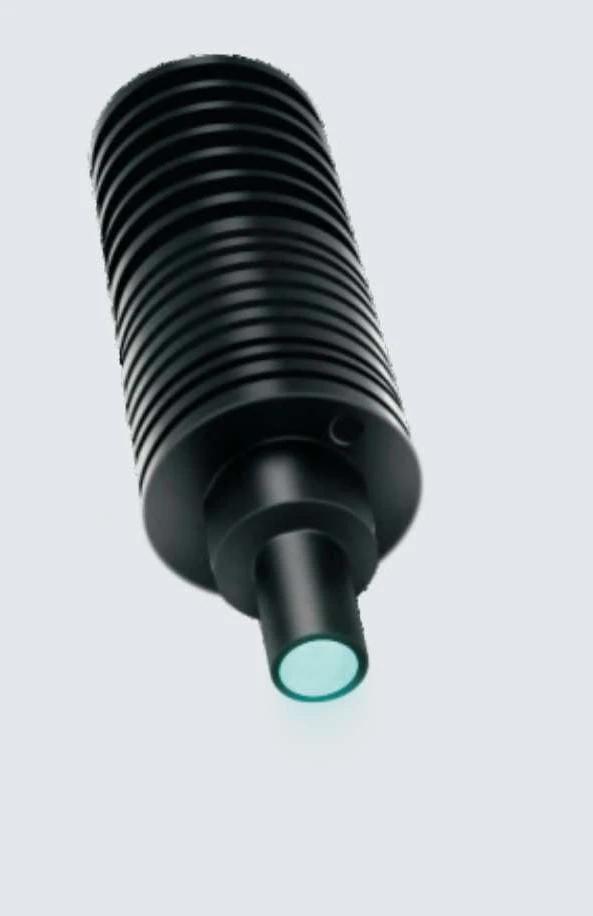

8 mm Spot light (HNSPL) (LS-HNSPL818)
Model LS-HNSPL818
Spot light with a front-end diameter of 8 mm or 9 mm and a 6 mm emitting diameter; high brightness and a small emitting area. Can be used alone in a machine vision system or with a microscope lens or a telecentric lens with coaxial function.
Features
- Special lens combination for high brightness
- Highly uniform spot illumination
Specifications
| Model | LS-HNSPL818 |
|---|---|
| Recommended controllers | HCPL515D / HAPL515 / HMAPL515 |
| Cable length (mm) | 500 |
| Operating environment | Ambient about 22 °C, operating temperature within 25 °C |
| Expected life | Red, white, blue and white (as printed): 20000 h continuous, decays to 60% (typical one-year decay 10-20%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Emitting size (mm) | front port dia. 8 |
| Power (W) | 4.5 |
| Emitting dia. (mm, drawing) | 6 |
| Body dia. (mm, drawing) | 25 |
| Length (mm, drawing) | 90 |
| Shipping weight | 0.20 kg |
Applications
- Capacitor appearance inspection
- Screw surface defects, dents
- Electronic component solder joints
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
