Line scan lights
302 x 88 mm Tunnel light (HNLDL) (LS-HNLDL30288)
Model LS-HNLDL30288
Tunnel light with high uniformity and high brightness, compact and durable. Used where the object needs an evenly lit surface, together with a line scan camera; it combines the characteristics of a dome light and a bar light.
Features
- High uniformity and high brightness
- Compact, durable structure
Specifications
| Model | LS-HNLDL30288 |
|---|---|
| Operating environment | Ambient about 22 °C; operating temperature within 25 °C |
| Expected lifetime | Red, white, blue and white light sources can be lit continuously for 20000 hours with light decay of 60% (about 10-20% decay after one year of normal lighting) |
| Support | All products come with one year of standard free technical support and can be customised to the object features, working distance, lighting angle and field of view |
| Emitting area (mm) | 302 x 88 |
| Power, green / blue / white (W) | 105 |
| Power, red (W) | 105 |
| Suggested controller | HDPC48150D |

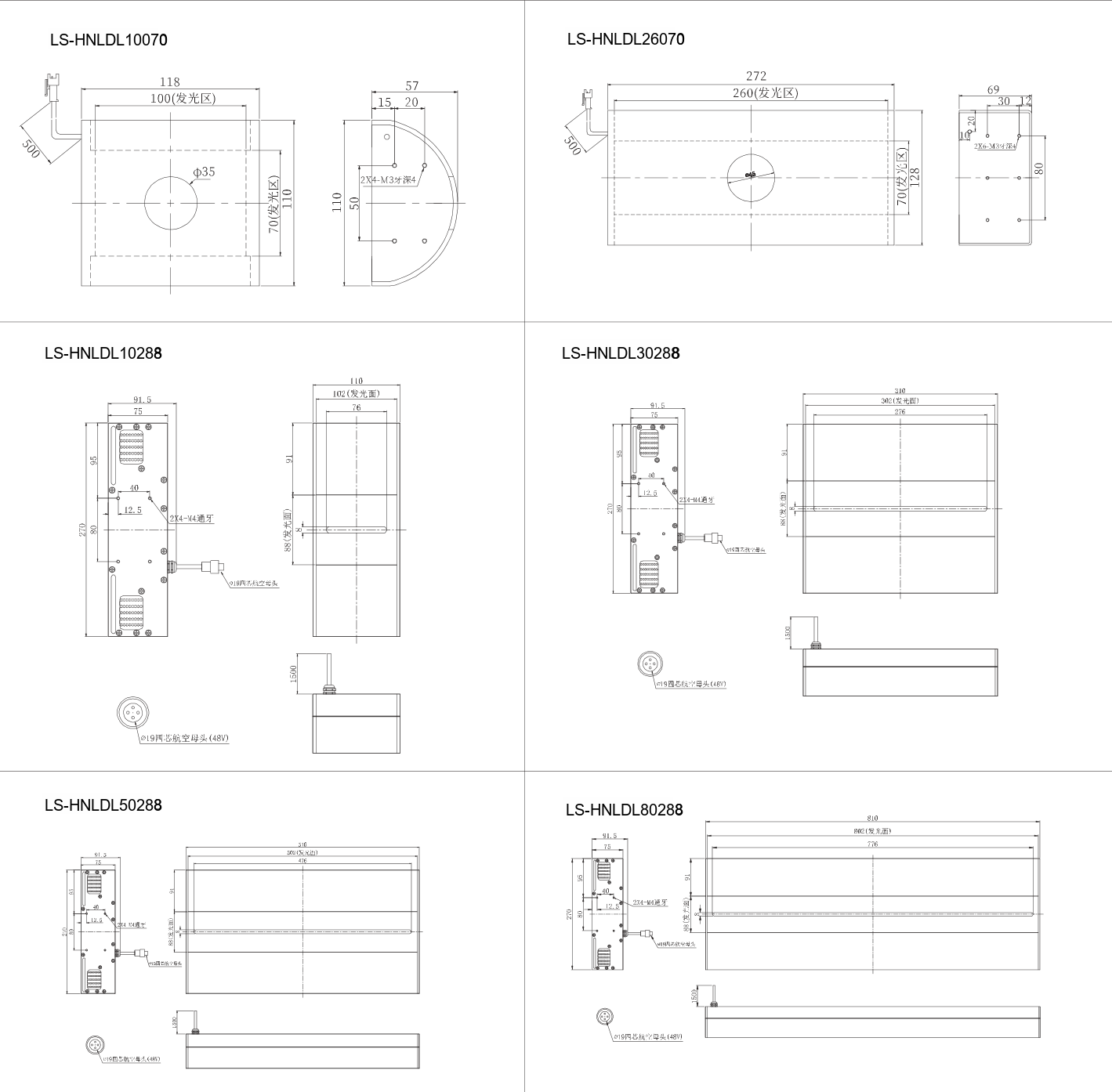

| Connector (drawing) | dia. 19 4-pin aviation female connector (48 V) |
| Cable length (drawing, mm) | 1500 |
| Voltage | 48 V (connector label in drawing) |
| Shipping weight | 2.95 kg |
Applications
- Line scan inspection in the textile industry; print quality inspection in the printing industry
- PCB character recognition, FPC gloss inspection, phone housing appearance inspection
- Paper surface print inspection, wafer 2D code inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Tunnel light (HNLDL) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-HNLDL10070 | 100 x 70 mm | 6 W | $279.00 | 17 in stock | View | |
| LS-HNLDL10288 | 102 x 88 mm | 35 W | $279.00 | 13 in stock | View | |
| LS-HNLDL26070 | 260 x 70 mm | 18 W | $579.00 | 13 in stock | View | |
| LS-HNLDL50288 | 502 x 88 mm | 175 W | $1,039.00 | 15 in stock | View | |
| LS-HNLDL80288 | 802 x 88 mm | 280 W | $1,599.00 | 13 in stock | View |
