Coaxial lights

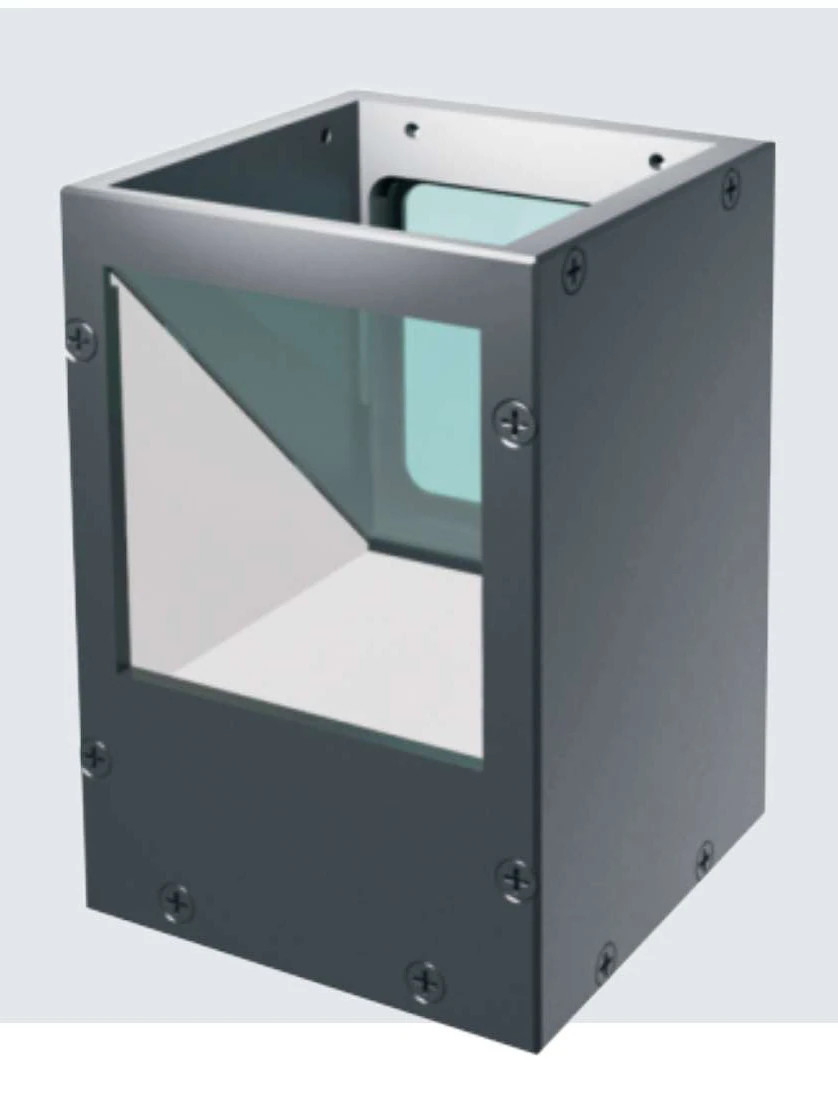

67 x 67 mm Corner coaxial light (HCOLC) (LS-HHCOLC67)
Model LS-HHCOLC67
Corner coaxial light in which the prism and the light source are combined into one; small and space-saving, with good uniformity and high brightness, plus a specially coated beam splitter that reduces light loss.
Features
- Small size, saves space
- Light at 90 degrees to the CCD camera; compact structure
Specifications
| Model | LS-HHCOLC67 |
|---|---|
| Recommended controllers | HAPC2424P / HAPC2460P |
| Cable length (mm) | 500 |
| Mounting | M3/M4 threads (per drawing) |
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Emitting area (mm) | 67 x 67 |
| Power, green/blue/white (W) | 12 |
| Power, red (W) | 8 |
| Shipping weight | 0.60 kg |
Applications
- Steel sheet contour positioning
- 2D code reading
- Metal surface defect inspection
- Camera module appearance inspection
- PCB mark inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Corner coaxial light (HCOLC) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-HHCOLC26 | 26 x 26 mm | 3 W | $79.00 | 12 in stock | View | |
| LS-HHCOLC40 | 40 x 40 mm | 6 W | $109.00 | 13 in stock | View | |
| LS-HHCOLC5540 | 55 x 40 mm | 6 W | $139.00 | 10 in stock | View | |
| LS-HHCOLC80 | 80 x 80 mm | 12 W | $219.00 | 11 in stock | View |
