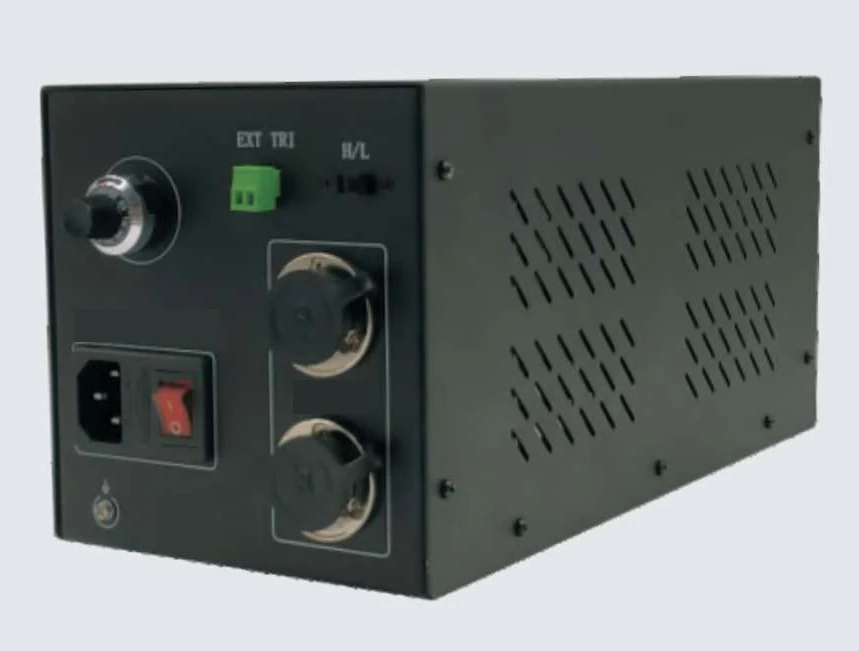

HAPC analog power supply controller (high power), 1 ch (LS-HHAPC24400P-1T)
Model LS-HHAPC24400P-1T
HAPC series high-power controllers provide brightness-control power for high-power 24 V LED lights, with a built-in high-power switching power supply, high-speed isolated trigger with trigger-on / trigger-off, and stepless knob adjustment on the front panel; stable, convenient, fast high-power controllers for industrial lighting.
Features
- Multi-turn stepless knob for precise light control
- Robust aviation connectors
- Built-in high-power switching power supply
- High-speed isolated trigger, supports trigger-on and trigger-off
Specifications
| Model | LS-HHAPC24400P-1T |
|---|---|
| Input voltage | AC100-240V 50/60Hz |
| Output voltage | 0-24 V |
| Control | Multi-turn knob |
| Front panel (LS-HHAPC24400P-1T / LS-HHAPC24500P-1T) | Multi-turn knob, trigger port (EXT TRI), on/off switch, power switch, ground terminal, two aviation light outputs |
| Channel / output | C1 O2 (1 channel, 2 outputs) |
| Single channel current | 10A |
| Total output current | 16.5A |
| Control (perform) | Knob |
| Trigger input | Yes |
| Channels | 1 |
| Shipping weight | 2.10 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the HAPC analog power supply controller (high power) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-HHAPC48550-1T | 1 ch | $119.00 | 4 in stock | View |
| LS-HHAPC24500P-1T | 1 ch | $129.00 | 4 in stock | View |
| LS-HHAPC48400-2T | 2 ch | $139.00 | 2 in stock | View |
