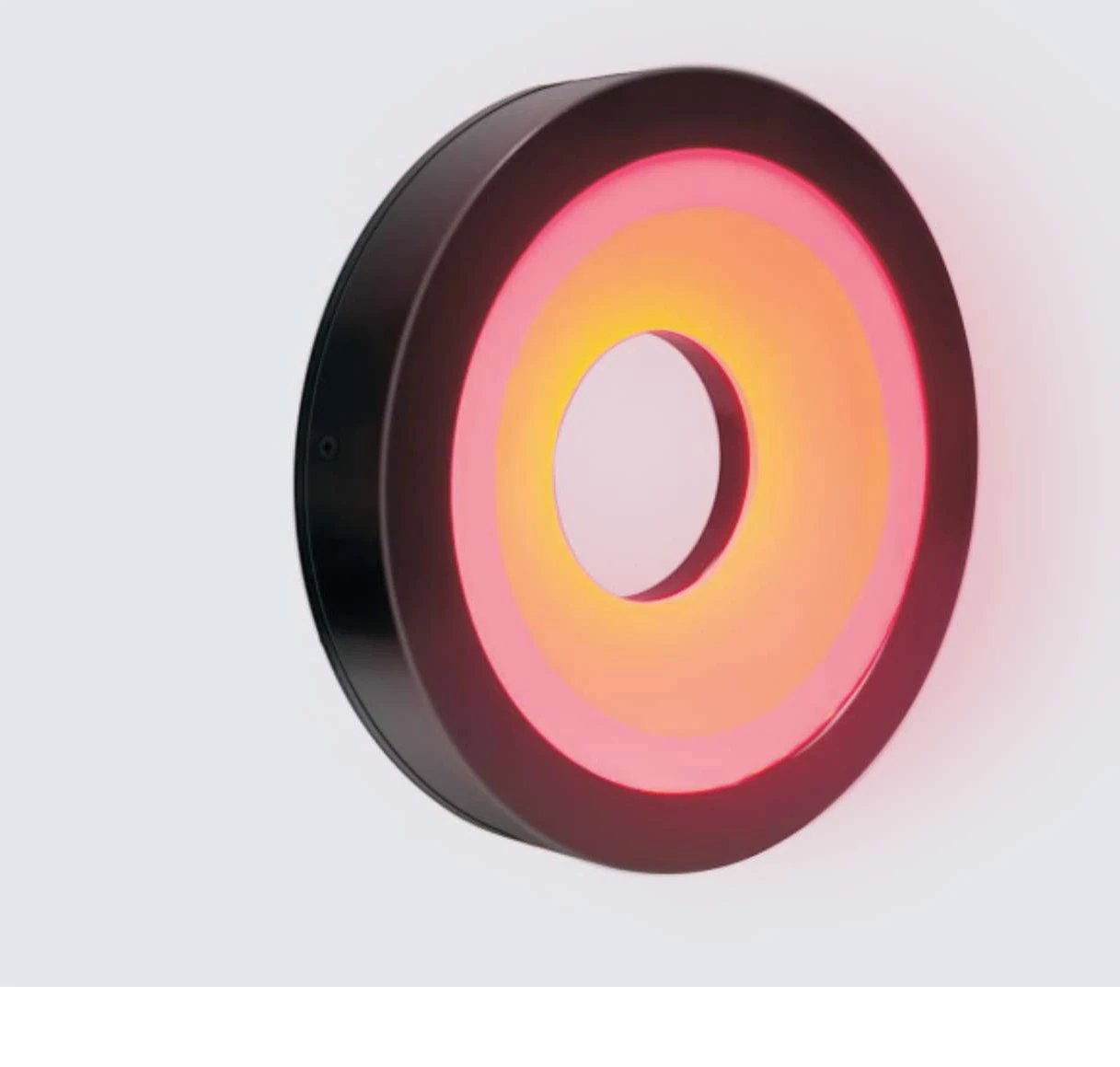

Flat shadowless light (HFSL) (LS-HFSL74)
Model LS-HFSL74
LEDs are densely arranged around the edge of a diffuser plate, so the emitted light is guided efficiently into the plate; a reflective film on the plate surface refracts and reflects it, producing very even, omnidirectional illumination.
Features
- Very even, omnidirectional illumination
Specifications
| Model | LS-HFSL74 |
|---|---|
| Recommended controllers | HL-MAPC2420 / HL-APC2424P |
| Cable length (mm) | 500 |
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Outer diameter (mm) | 74 |
| Inner diameter (mm) | 20 |
| Power, green/blue/white (W) | 2.5 |
| Power, red (W) | 1.5 |
| Height (mm, drawing) | 18 |
| Shipping weight | 0.25 kg |
Applications
- Tablet/pill appearance inspection
- Reading 2D codes on metal surfaces
- Small metal parts surface inspection
- Laser characters on ceramic capacitor surfaces
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
