Shadowless lights

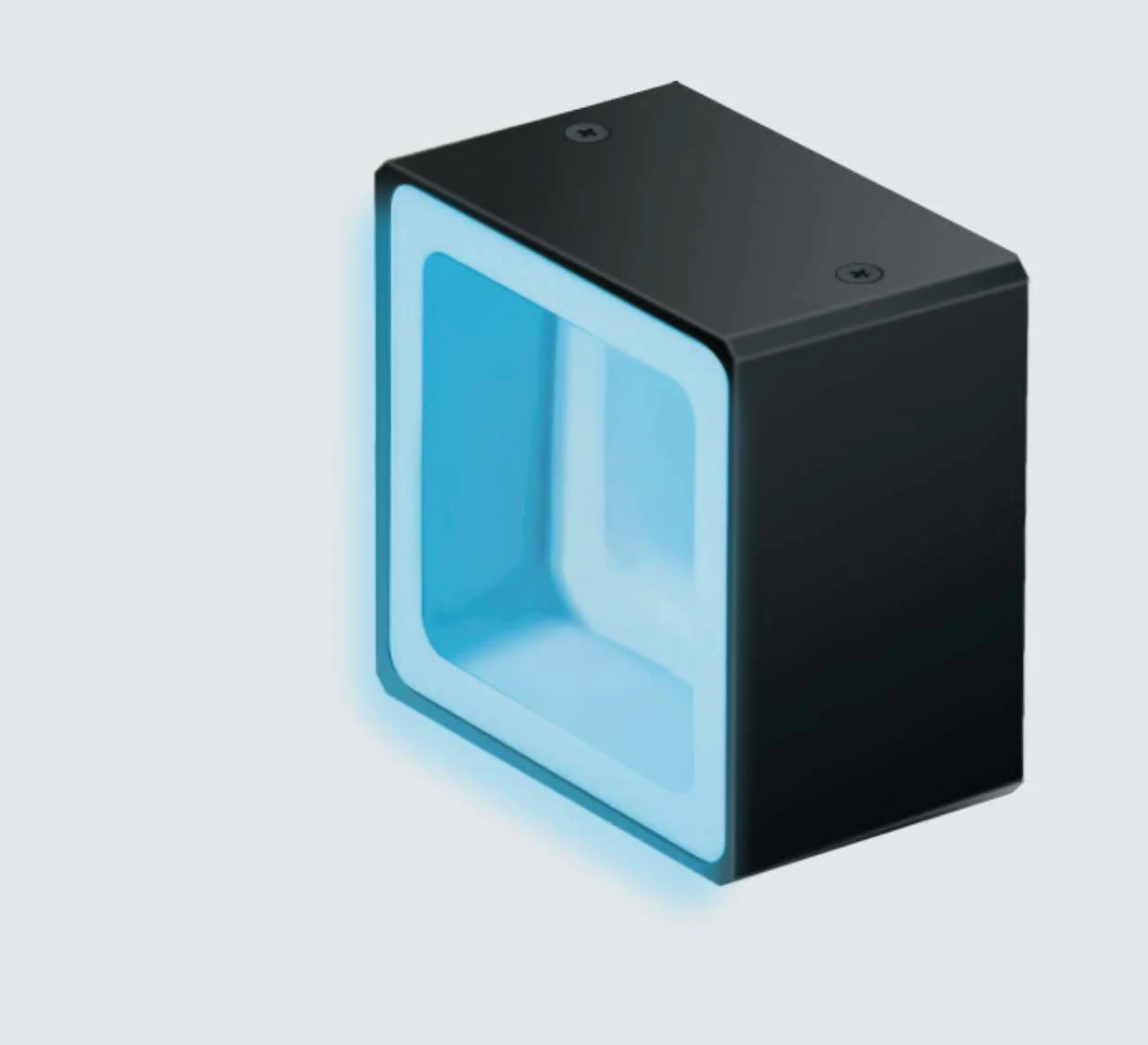

36 x 36 mm Square shadowless light (HFQ) (LS-HFQ48P)
Model LS-HFQ48P
Uses a unique illumination structure: LED light is diffused evenly by special optical material while a flexible circuit board fixes the illumination angle at 90 degrees; after refraction it lights the object evenly and efficiently. Mainly for objects needing balanced surface lighting where reflections and glare must be avoided.
Features
- Illumination area freely customisable
- High brightness, highly uniform shadowless illumination
Specifications
| Model | LS-HFQ48P |
|---|---|
| Recommended controllers | HMAPC2420 / HAPC2424P |
| Cable length (mm) | 500 |
| Mounting | 4-M3 threads, depth 4 (per drawing) |
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Emitting area (mm) | 36 x 36 |
| Power (W) | 1.5 |
| Viewing window (mm, drawing) | 10 x 10 |
| Shipping weight | 0.20 kg |
Applications
- FPC product positioning
- Electronic component presence inspection
- Bent pin inspection
- Substrate appearance and pattern inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
