Machine vision lenses

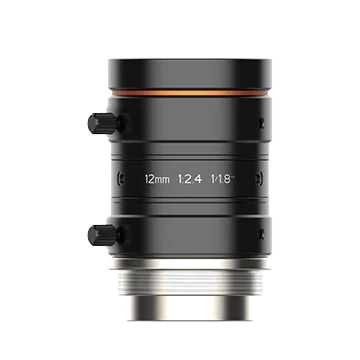

12mm, F2.4, 1/1.8", 10MP Lens, C-Mount (LS-HF1224M-10MP)
Model LS-HF1224M-10MP
12mm, F2.4, 1/1.8", 10MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Bigger aperture, lower distortion and higher relative illumination rate
Features
- Ultra high resolution and consistency of image clarity
- Bigger aperture, lower distortion and higher relative illumination rate
- Achromatic optical system design, Better imaging performance with color camera
- Excellent vibration resistance performance, optical axis shifting within pixel level
- Good stability at high and low temperature
- Multilayer and broadband coating design, compatible with visible and near-infrared applications
Specifications
| Model | LS-HF1224M-10MP |
|---|---|
| Focal length | 12 mm |
| F-number | F2.4 to F16 |
| Image size | Ø9 mm (1/1.8") |
| Distortion | 0.15% |
| Minimum object distance | 0.1 m |
| Field of view | D (8.96 mm): 40.2°; H (7.38 mm): 33.6°; V (4.92 mm): 22.9° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × 0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø29 mm × 37 mm (Ø1.1" x 1.5") |
| Weight | 65.9 g (0.1 lb.) |
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.19 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the HF-P series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-HF0824M-10MP | $89.00 | 3 in stock | View | |
| LS-HF1624M-10MP | $89.00 | 4 in stock | View | |
| LS-HF2524M-10MP | $89.00 | 4 in stock | View | |
| LS-HF3524M-10MP | $89.00 | 2 in stock | View | |
| LS-HF5024M-10MP | $89.00 | 4 in stock | View | |
| LS-HF0624M-10MP | $99.00 | 4 in stock | View |
