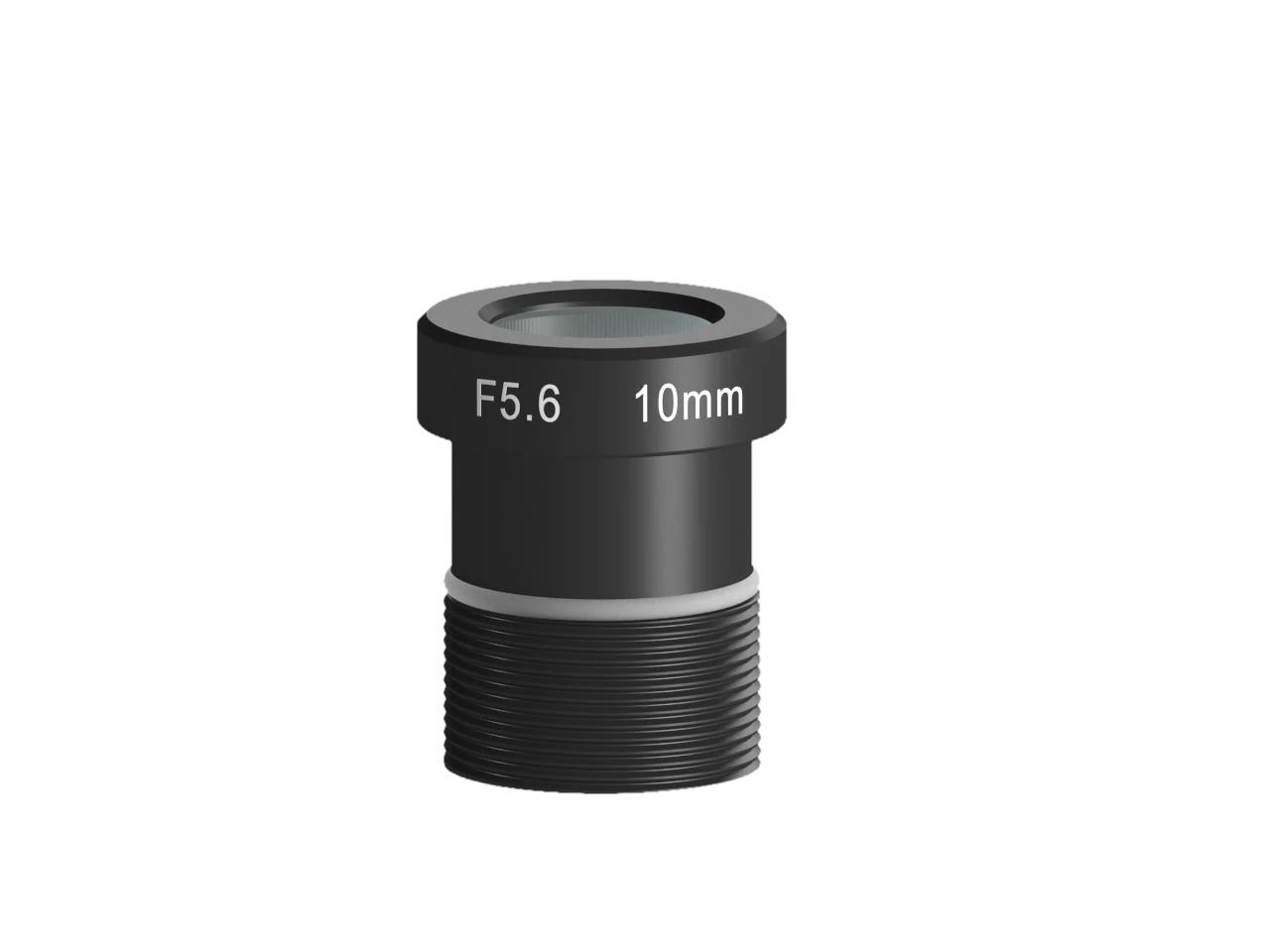

10mm, F5.6, 1/1.7", 12 MP, M12-mount lens (LS-HF1056-12S)
Model LS-HF1056-12S
10mm, F5.6, 1/1.7", 12 MP, M12-mount lens. Optimized for industrial machine-vision working distances 12 MP high resolution with highly consistent sharpness across the image
Features
- Optimized for industrial machine-vision working distances
- 12 MP high resolution with highly consistent sharpness across the image
- Low distortion with high edge brightness
- S-mount (M12*0.5) for easy system integration
Specifications
| Model | LS-HF1056-12S |
|---|---|
| Focal length | 10 mm |
| F-number | F5.6 |
| Image size | Φ9.4 mm(1/1.7′′) |
| TV Distortion | ≤ 0.12% |
| Working distance range | 100 mm ~ ∞ |
| Field of view | D(8.86 mm):47°; H(7.37 mm):40°; V(4.91 mm):27° |
| Connector type | S-Mount |
| TTL | 21.64 ~ 22.53 mm |
| Dimension | Φ14 × 17.29 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.13 kg |
