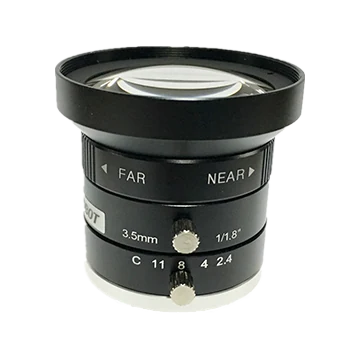

3.5 mm focal length, 1 MP lens, 1/1.8”, F2.4 (LS-HF03524M-MP)
Model LS-HF03524M-MP
3.5 mm focal length, 1 MP lens, 1/1.8”, F2.4. High image sharpness with good uniformity Maximum aperture F2.4
Features
- High image sharpness with good uniformity
- Maximum aperture F2.4
- Wide field of view, low distortion
- Compact size for easy integration into small equipment
Specifications
| Model | LS-HF03524M-MP |
|---|---|
| Focal length | 3.5 mm |
| F-number | F2.4 ~ C |
| Image size | Φ9 mm(1/1.8'') |
| TV Distortion | -1.23% |
| Minimum object distance | 0.15 m |
| Field of view | D(8.96 mm):104.5°; H(7.38 mm):94.3°; V(4.92 mm):78.0° |
| Iris control | Manual |
| Focus control | Manual |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Filter thread | M40.5 × 0.5 |
| Dimension | Φ42*37.7 mm |
| Weight | 89.39 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Distortion | -1.23% |
| Shipping weight (estimated) | 0.23 kg |
