Dome lights

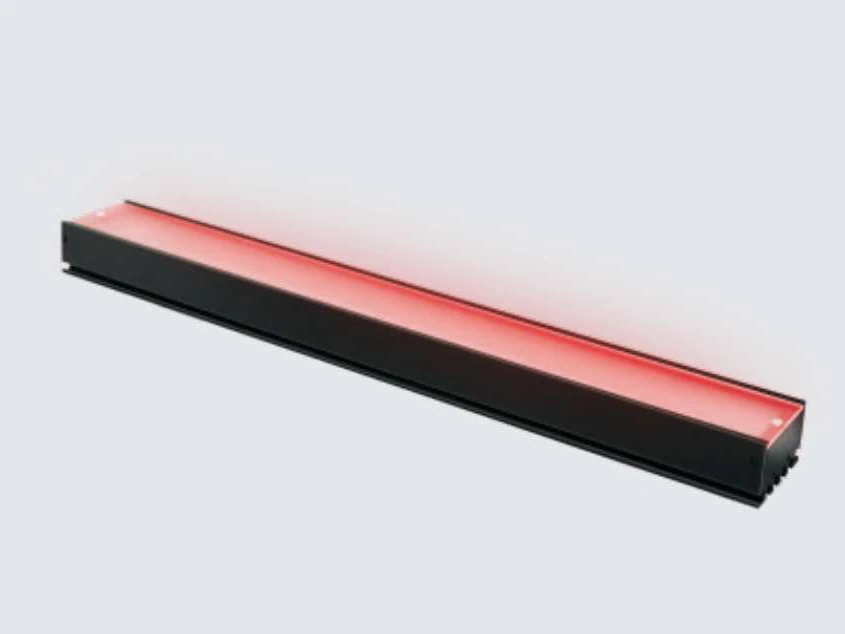

100 mm IR light (LS-HDL100-IR850)
Model LS-HDL100-IR850
Infrared light sources providing near-infrared 850 nm and 940 nm illumination; shape and lighting mode can be customised. Infrared light penetrates more strongly than ordinary light and works well for inspecting translucent samples.
Features
- Shape and lighting mode can be freely customised
- Near-infrared 850 nm and 940 nm illumination
Specifications
| Model | LS-HDL100-IR850 |
|---|---|
| Peak wavelength | IR 850-940 nm |
| Operating environment | Ambient about 22 °C; operating temperature within 25 °C |
| Expected lifetime | Can be lit continuously for 30000 hours with light decay of 45% (about 8-10% decay after one year of normal lighting) |
| Support | All products come with one year of standard free technical support and can be customised to the object features, working distance, lighting angle and field of view |
| Suggested controller | HAPC2424P / HDPC2465D |
| Emitting size (mm) | Emitting area 100 |
| Power (W) | 7.5 |
| Shipping weight | 0.50 kg |
Applications
- Medical (vein recognition, eyeball positioning)
- Packaging (see-through plastic packaging)
- Clothing, textiles
- Imaging case: product liquid level inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
