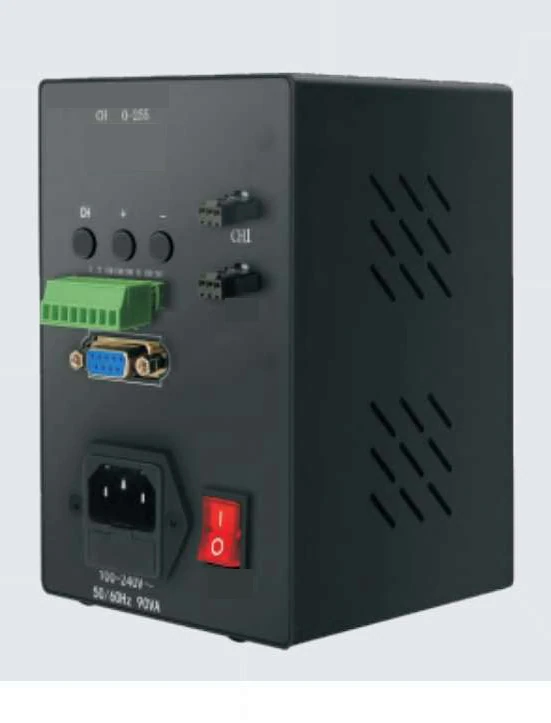

CPL constant current power supply, 2 ch (LS-HCPL515D-2T)
Model LS-HCPL515D-2T
The LS-HCPL515D-2T constant-current controller provides brightness-control power for LED spot lights; with only one channel loaded the rated output current reaches 730 mA. Brightness is controlled precisely from the front panel or by serial communication (remote control), 0-255 (256 steps); constant-on mode can be switched by serial command or external trigger. Suited to spot lights that need very stable brightness.
Features
- Output voltage pulse width (light-on time) adjustable from 1 us to 999 us, with proportional setting
- Raises instantaneous light brightness to over 200% while extending light life; automatically outputs a camera trigger signal so the light and the camera capture are synchronised
- Works in external trigger mode (light on when triggered) or internal trigger mode (lit at a fixed frequency)
- Built-in overload auto-protection
Specifications
| Model | LS-HCPL515D-2T |
|---|---|
| Input voltage | AC100-240V 50/60Hz |
| Output voltage | 5V |
| Control | Front-panel keys + RS232 serial port |
| Dimming | 0-255 (256 steps) |
| Channel / output | C2 O2 (2 channels, 2 outputs) |
| Single channel current | 0-730mA |
| Total output current | 1.46A |
| Control (perform) | KEY buttons, RS232 serial port |
| Trigger input | Yes |
| Channels | 2 |
| Shipping weight | 0.70 kg |
