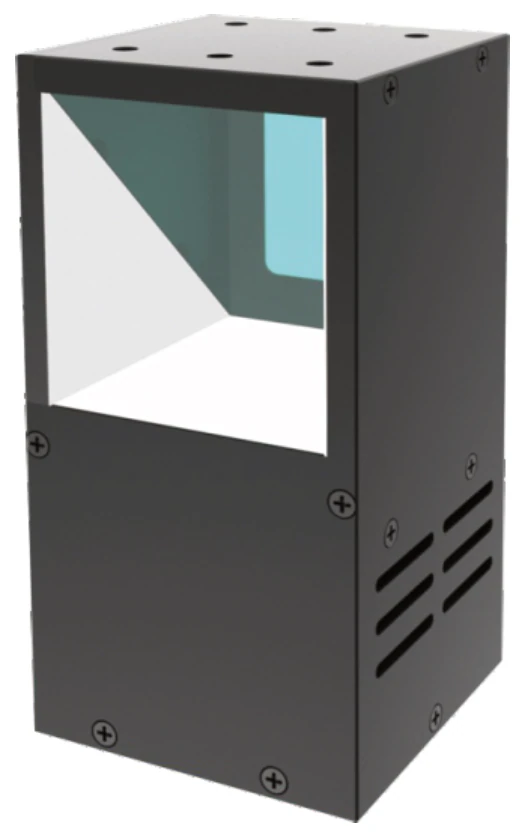

40 x 44 mm High brightness coaxial light (HCOS series) (LS-HCOS40-R/G/B/W)
Model LS-HCOS40-R/G/B/W
High-brightness coaxial light, 4-5 times brighter than standard coaxial lights, with air-cooled heat dissipation. Because of the heat dissipation the housing is larger than a standard coaxial light of the same luminous area.
Features
- High brightness (4-5 times the brightness of standard coaxial lights)
- Because of the heat dissipation, the light is larger than a standard coaxial light of the same luminous area
- Air cooling heat dissipation
Specifications
| Model | LS-HCOS40-R/G/B/W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-CPL48150B-2T |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Cooling | Air cooling |
| Cable length | 500 mm (drawings) |
| Item | 1 |
| Power R (W) | 18 |
| Power G/B/W (W) | 18 |
| Luminous size (mm) | 40 x 44 |
| L (mm) | 98.5 |
| W (mm) | 48 |
| H (mm) | 47 |
| Recommended controller | LS-CPL48150B-2T |
| Shipping weight | 0.35 kg |
Applications
- Suitable for all coaxial optical applications
- Suitable for high-speed flight photography
- Inspection of reflective surfaces, including dents, damage and defects
- Printed circuit board character and pattern inspection
- Mark positioning
- All kinds of QR code recognition
- Motor center positioning
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
