Coaxial lights

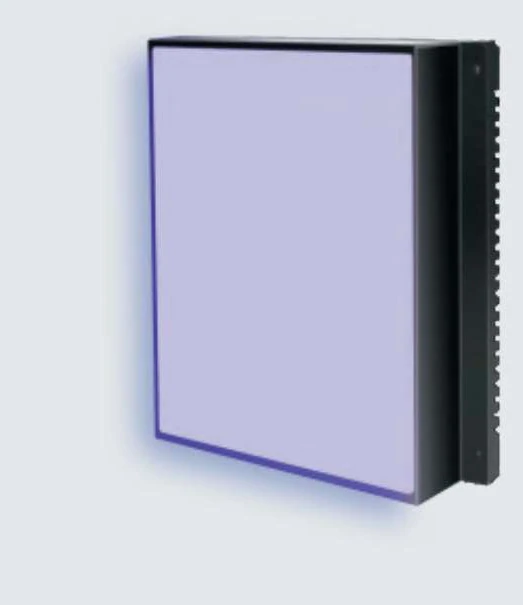

UV light (LS-HCOL38P-UV395)
Model LS-HCOL38P-UV395
Ultraviolet light sources using highly stable UV LEDs, providing near-UV 365-395 nm illumination; shape and size can be customised. UV-sensitive parts (for example a lamp core) light up under UV, giving good contrast for measuring the core diameter.
Features
- Highly stable UV LEDs
- Near-UV 365-395 nm illumination
- Shape and size can be customised
Specifications
| Model | LS-HCOL38P-UV395 |
|---|---|
| Peak wavelength | UV 365-395 nm |
| Operating environment | Ambient about 22 °C; operating temperature within 25 °C |
| Expected lifetime | Can be lit continuously for 20000 hours with light decay of 65% (about 15-25% decay after one year of normal lighting); the catalog text says "IR light" in this row |
| Support | All products come with one year of standard free technical support and can be customised to the object features, working distance, lighting angle and field of view |
| Suggested controller | HAPC2424P |
| Size (mm) | Emitting area 38 x 38 |
| Power (W) | 4.5 |
| Shipping weight | 0.30 kg |
Applications
- Banknote printing and ticket printing industries
- Fluorescent substance detection
- Detection of small scratches, dents and similar defects on product housings
- Imaging case: lamp core diameter inspection (case title printed as "product liquid level inspection")
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the UV light series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-HCOL40K-UV365 | 3 W | $189.00 | 5 in stock | View |
