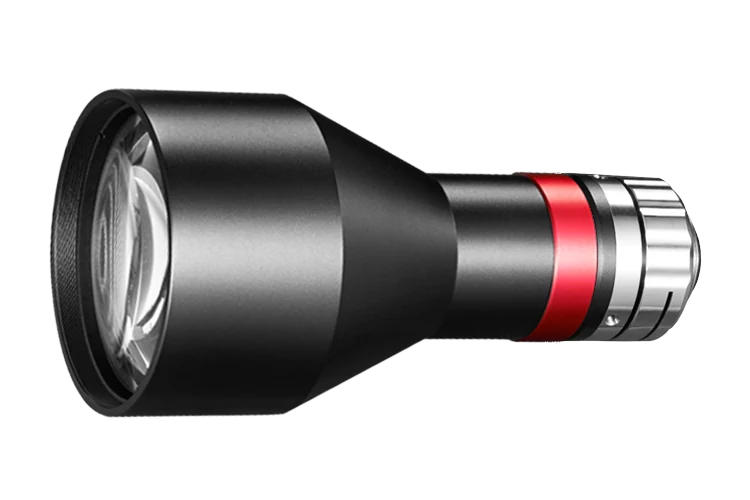

Bi-Telecentric Lens, 0.214x, 118 mm WD, 1/1.8" (LS-HBT-0214-118)
Model LS-HBT-0214-118
Bi-Telecentric Lens, 0.214x, 118 mm WD, 1/1.8". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to 1/1.8”
Specifications
| Model | LS-HBT-0214-118 |
|---|---|
| Magnification | 0.214 |
| Working distance | 118 ± 3 mm |
| F-number | F4.6 |
| Image size | 1/1.8" |
| Depth of field | ±9.6 mm @F11 |
| Distortion | ≤ 0.1% |
| Object-side resolution | 12.0 μm |
| Object-side telecentricity | ≤ 0.1° |
| Connector type | C-Mount |
| Coaxial light | Not supported |
| Dimension | 113.8 mm × Φ62 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Optical distortion | < 0.1% |
| Weight | 400 g |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the H Series Bi-Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-HBT-0381-40 | 0.381x, 40 mm WD, 1/1.8" | $1,029.00 | 2 in stock | View |
| LS-HBT-0171-118 | 0.171x, 118 mm WD, 1/2.5" | $1,279.00 | 2 in stock | View |
| LS-HBT-019-118 | 0.19x, 118 mm WD, 1/2" | $1,379.00 | 2 in stock | View |
| LS-HBT-0141-158 | 0.141x, 158 mm WD, 1/1.8" | $1,649.00 | 3 in stock | View |
| LS-HBT-0113-158 | 0.113x, 158 mm WD, 1/2.5" | $1,649.00 | 4 in stock | View |
| LS-HBT-0125-158 | 0.125x, 158 mm WD, 1/2" | $1,649.00 | 2 in stock | View |
| LS-HBT-0100-178 | 0.1x, 178 mm WD, 1/2.5" | $1,789.00 | 4 in stock | View |
| LS-HBT-009-238 | 0.09x, 238 mm WD, 1/1.8" | $2,269.00 | 5 in stock | View |
