H series handheld industrial barcode reader (LS-H920)

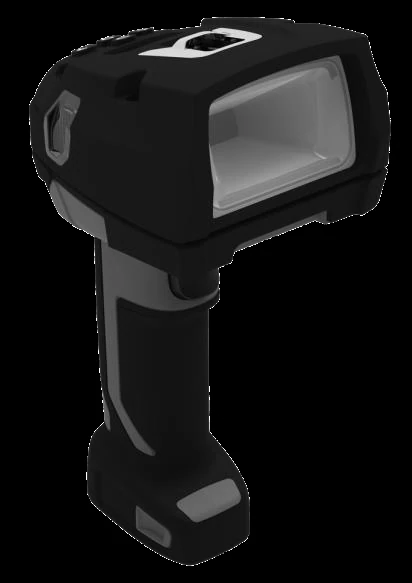

Representative photo of this series
Handheld code readers
H series handheld industrial barcode reader, 1.0 MP, USB 2.0 (LS-H920)
Model LS-H920
Handheld industrial barcode reader with a decoding algorithm designed for mobile scenes, a training function for designated barcodes, coaxial aiming, and a Bluetooth 5.0 wireless version with a 3100 mAh battery.
Features
- Handheld algorithm engine designed for mobile scenes, copes with difficult-to-read codes
- Training function: train designated barcodes to improve scanning efficiency
- Coaxial aiming for easy code reading
- Bluetooth 5.0 with 3100 mAh battery (wireless version)
- IP67 durable and reliable
- Rich communication protocols
- Tail end prevention
- Quick start
- Easily switch interfaces
Specifications
| Model | LS-H920 |
|---|---|
| Support barcode | 2D: Datamatrix (ECC200), QR Code; 1D: Code39, Code93, Code128, EAN13, EAN8, UPC-E, interleaved 2 of 5 |
| Image sensor | 1280*800 Pixel Global Shutter CMOS |
| Max acquisition frame rate | 60FPS |
| Pixel size | 3.0µm |
| Target size | 1/4" |
| View field | 31° horizontally, 20° vertically |
| Check angle | Tilt angle ±60°, deflection angle ±60°, rotation angle 360° |
| Symbol contrast | 20% |
| Depth of field range | DM 5mil 10-60mm / DM 10mil 10-100mm |
| Focal length (mm) | 6.8 |
| Lens mount | M8 |
| Ambient lighting | 0~10000lux |
| Light source | Diffuse: White LED |
| Aim | Green LED, coaxial aiming |
| Instruct | Three-color LED, OLED display, buzzer, vibrator |
| Trigger | Single trigger button, four user interaction buttons |
| IP protection level | IP67 |
| Button life | 10W times (100,000) |
| Drop height | 2m |
| Humidity | 20~95% RH no condensation |
| Certification | CE, FCC, RoHS |
| Communication protocol | USB (HID/CDC) |
| Interface | USB 2.0 |
| Powered by | 24V DC, USB 5V |
| Max power consumption | 2W |
| Operating temperature | 10~45°C |
| Storage temperature | 30~70°C |
| Resolution | 1280 x 800 |
| Shutter | Global |
| Voltage | 24 V DC / USB 5 V |
| Shipping weight | 0.59 kg |
Applications
- 3C electronics
- Automobile manufacturing (DPM part traceability)
- Logistics
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the H series handheld industrial barcode reader (LS-H920) series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-H920-S-BT-01-01 | 1.0 MP, USB 2.0 | $539.00 | 5 in stock | View |
| LS-H920-B-BT-01-02 | 1.0 MP | $539.00 | 3 in stock | View |
