Shadowless lights

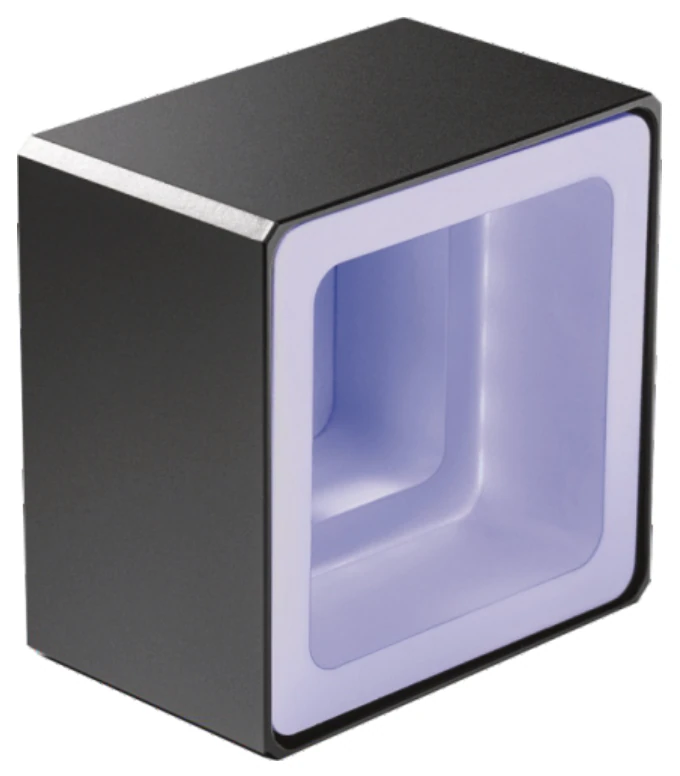

Square shadowless light source (FQS) (LS-FQS96-R/G/B/W)
Model LS-FQS96-R/G/B/W
Square shadowless light suitable for measuring square objects, giving uniform illumination and eliminating reflections.
Features
- Suitable for square object measuring
- Uniform illumination
- Eliminate the reflections
Specifications
| Model | LS-FQS96-R/G/B/W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-DPS series, LS-APS series, LS-SPS series (the selected controller should match the power of the light source) |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Warranty | 1 year from shipment (faults not caused by the user: free repair or replacement) |
| Illuminance chart reference | LS-FQS96-W; uniformity LS-FQS180120-W, FOV 220 x 220 mm at LWD 10/30/50 mm |
| Power R (W) | 2.8 |
| Power G/B/W (W) | 4.5 |
| Overall L (mm) | 96 |
| Overall W (mm) | 96 |
| Overall H (mm) | 30 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Shipping weight | 0.35 kg |
Applications
- FPC product positioning
- Electronic components inspection
- Pin bending inspection
- Pin surface dirt inspection
- IC pin drop inspection
- Inspection of substrate appearance pattern
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
